Introduction:

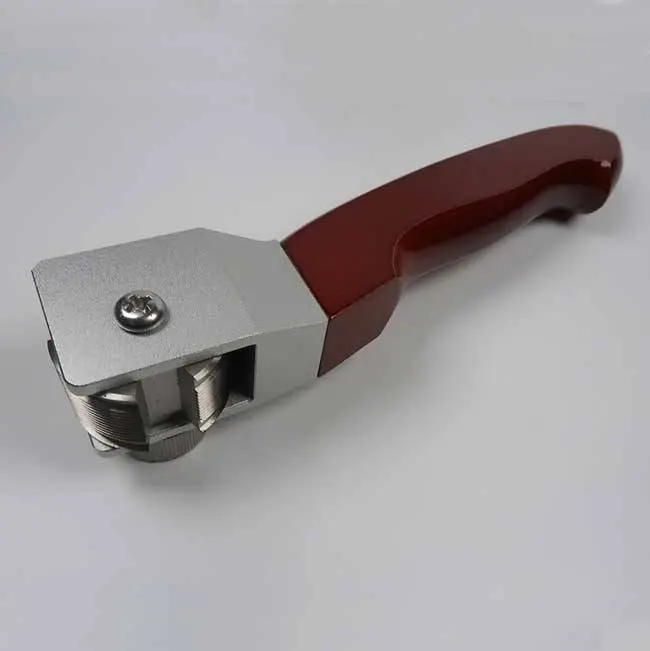

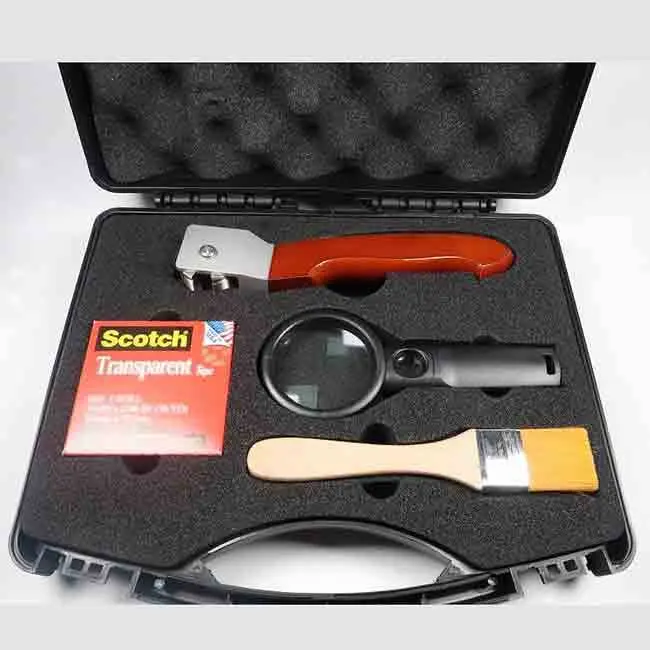

This instrument is widely used to evaluate the adhesion of various coatings .A high precise machined wheel presenting 6 or T11 cutting blades with various spacing is mounted in a handle. The test is carried out by performing 2 series of crossed cuts at right angle. The obtained lattices is either brushed or cleared with adhesion tape. According to the coatings thickness and the related spacing, the results can be classified with reference to a standard scale. It has long life tool with 8 cutting edges and comfortable wood handle. When applied to multi-coat system, assessment of the resistance to separation of individual layers of the coating from each other may be made.

TMTECK-120 Cross Hatch Cutter is designed and manufactured according to ISO 2409-1992, GB/T9286-98, BS 3900 E6 and ASTM D3359 standards

Technical Specification:

Order Information:
