Cross Hatch Cutter

Need A Quote ?

We love to hear from you !

Product details Parameters

Specifications
TMTeck design cross hatch cutter is applicable to determine the adhesion of organic coatings by cross-hatching.This instrument is designed for assessing the resistance of paint or related coatings to separation from substrates when a right-angle lattice oattern is cut into the coating, penetrating through to the substrate.
The Cross Hatch Cutters conform with the requirements of :BS 3900 E6;BS/EN ISO 2409;ASTM D 3359;GB/T 9286, ,it is economy.
Main Technical Parameters:
1.Six working side blades:When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to change blade.
2.Multi-cutting blades spacing:1mm/2mm/3mm
3.The number of square:25squares/100squares

Main technical parameters:

Working bladeWidth of blade endHardnessCoat thickness
1mm 6 tooth0.03mm, 0.06mmHard0-60μm
1mm 11 tooth0.03mm, 0.06mmHard0-60μm (0-50μm ASTM)
2mm 6 tooth0.03mm, 0.06mmHard & Soft61-120μm (50-125μm ASTM)
2mm 11 tooth0.03mm, 0.06mmHard & Soft61-120μm (50-125μm ASTM)
3mm 6 tooth0.03mm, 0.06mmHard & Soft121-250μm

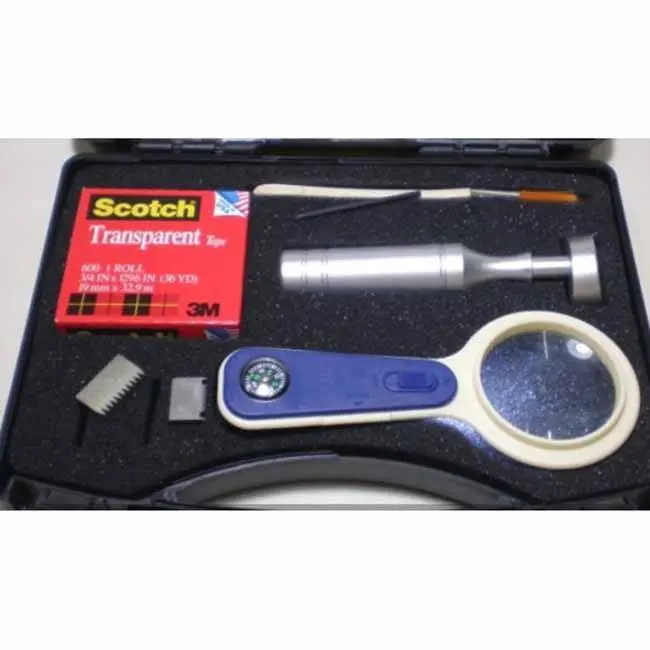

Standard Package:
Cross Hatch Cutter:1pcs
Magnifier: 1pcs
Brush:1 pcs
Gummed tape(3M):1pcs
