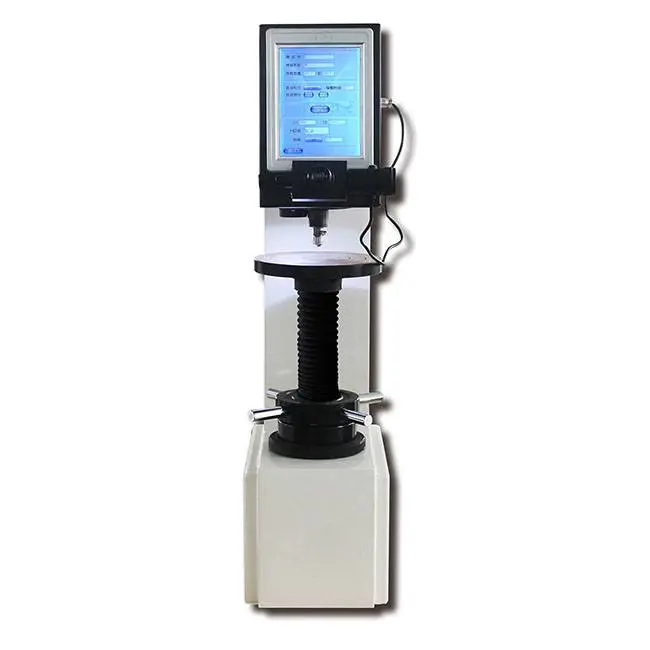

Automatic Turret 0.1um 0.1HBW Digital Brinell Hardness Tester TMHB-3000MDX

Need A Quote ?

We love to hear from you !

Product details Parameters

Main features:

  1. With electric loading, high precision load cell closed-loop control system, each force automatically compensated

  2. automatic turret, objectives, indenter switch freely,the test point is located automatically and accuracy,auto-loading, auto-unloading

  3. Eyepiece structure with digital encoder, measure D1 and D2 values, and LCD directly displays hardness values and D1 and D2 values.

  4. Calibrate according to the standard block or length scale

  5. Test force can be auto-corrected by standard dynamometer

  6. Vickers and Rockwell hardness values can be converted

  7. All data can be saved in the U disk as EXCEL

Technical specification:

ModelTMHB-3000MDX
Brinell scaleHBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000, HBW10/1500,HBW10/3000
Test force(Kgf)62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),187.5kgf(1839N),250kgf(2452N),500kgf(4903N),750kgf(7355N) 1000kgf(9807N),1500kgf(14710N),3000kgf(29420N)
Carried standardBSEN 6506, ISO 6506, ASTM E10, GB/T231
Test force precision62.5～250kgf≤1% 500～3000kgf≤0.5%
Test device resolution0.1um
Hardness resolution0.1HBW
Dwell time0～99S
Data out putTouch screen
Data storageResults saved in U disk as Excel
Max Height of Specimen200mm
Distance of Indenter to outer wall155mm
Size550×210×800mm
Weight110kg
PowerAC220+5%,50～60Hz



Standard accessories:

ItemQuantityItemQuantity
Eyepiece1Large, Medium, “V” shaped Testing TableEach 1
Diameter 2.5,5,10mm Hard Alloy Steel Ball IndenterEach 1Standard block(HBW10/3000, HBW10/1000,HBW2.5/187.5)Each 1
U disk touch pen1Dust bag1
Power cable1Fuse 2A2
Certificate warranty card1Maunal1
