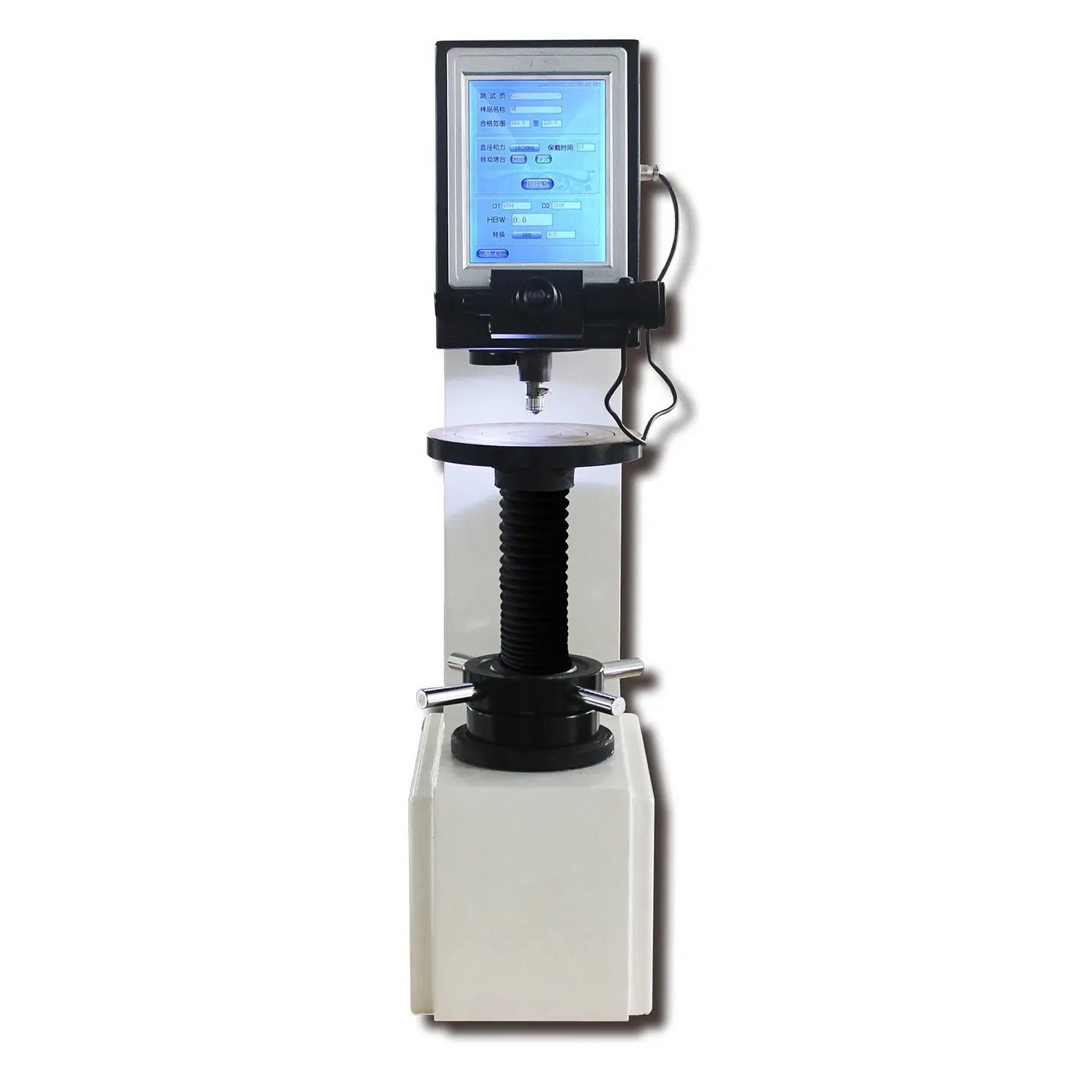

TMHB-3000DX Digital Brinell hardness tester



Main features:

  1. Adopts electronic automatically add load, with high accuracy sensor, have special closed-loop control system , automatic compensation for each shift

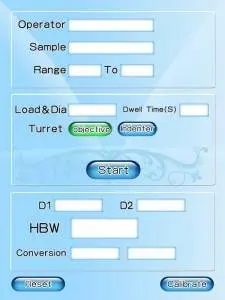

  2. Eyepiece structure with digital encoder, measure D1, D2 value, LCD displays hardness value and D1, D2 value directly

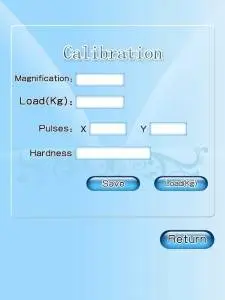

  3. Can be calibrated according to standard hardness block or length scale.

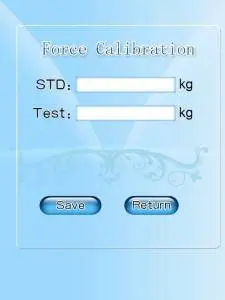

  4. The test force can be modified automatically by standard dynamometer.

  5. The hardness values of rockwell and vickers can be converted.

  6. All data is stored in EXCEL format on U disk, or can choose built-in printer, RS232 is optional.

Technical specification:

ModelTMHB-3000DX

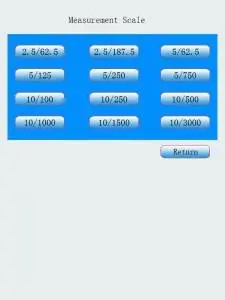

Brinell scaleHBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000, HBW10/1500,HBW10/3000
Test force(Kgf)62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),187.5kgf(1839N),250kgf(2452N),500kgf(4903N),750kgf(7355N) 1000kgf(9807N),1500kgf(14710N),3000kgf(29420N)
Carried standardBSEN 6506, ISO 6506, ASTM E10, GB/T231
Test force accuracy62.5～250kgf≤1% 500～3000kgf≤0.5%
Measuring device resolution0.1um
Hardness value resolution0.1HBW
Dwell time0～99S
Data outputLCD display
Data storageAll data is stored in EXCEL format on U disk, or can choose built-in printer
Max. Height of specimen200mm
Distance of indenter to outer wall155mm
Dimension550×210×800mm
Weight110kg
Power supplyAC220+5%,50～60Hz






Standard Accessories:

ItemQuantityItemQuantity
Eyepiece1Large, Medium, “V” shaped Testing TableEach 1
Diameter 2.5,5,10mm Hard Alloy Steel Ball IndenterEach 1Standard block(HBW10/3000, HBW10/1000,HBW2.5/187.5)Each 1
U disk, touch pen1Dust bag1
Power cable1Fuse 2A2
Certificate, warranty card1Manual1
