1. Product Features

• 6 samples, pressurized independently.

• PLC independently controls the grinding disc and sample disc: all grinding parameters, such as speed, grinding time, rotation direction, water valve closing, etc., are automatically saved and easily invoked.

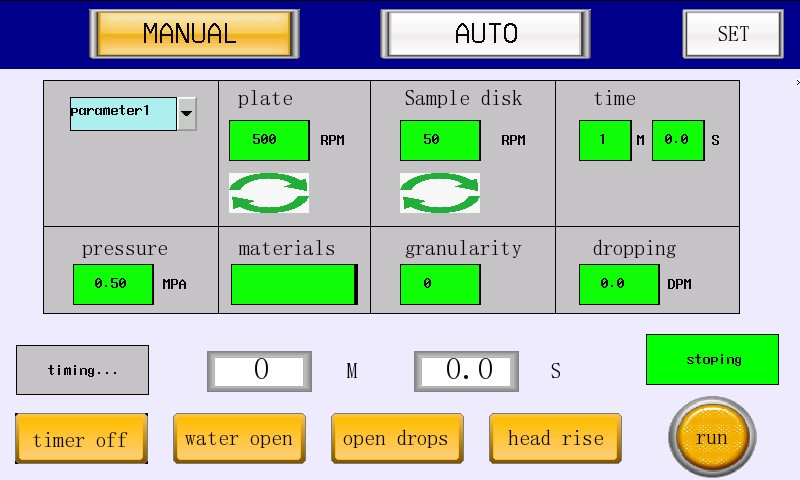

• Touch screen interface: easy to set grinding parameters, intuitive state display, simple operation.

• The rotation of grinding disc and sample disc is infinitely variable, and the rotation direction can be switched.

• PLC controls the on and off of the water and abrasive drip.

• Working mode：

1) Automatic mode:

According to the sample material or user's habit, can set and call: 30 sets of process (process), each set of process can contain 10 steps of process parameters (each process for a certain step of grinding or throwing process process parameters: rotation speed of grinding disc and grinding head, grinding and throwing time.)

2) Manual mode:

According to each step of grinding and throwing process, 30 process parameters can be set and called: rotation speed of grinding disc and grinding head, grinding and throwing time, water on and off.

3) Setting mode:

To operate a function of a device independently

• Easily replace the magnetic anti-sticking disk, you can complete the coarse, fine grinding and coarse, fine polishing of all kinds of samples, a disk is equivalent to N disks.

• Electromagnetic automatic locking brake, instead of manual grinding head locking wrench, more convenient.

• U disk store 300 process, can be imported and exported.

• Chinese/English interface switch.

• High precision, smooth operation, low noise.

• Optional drip dispenser.

• Optional mobile remote control operation module.

1. Technical Specifications
