Brief Introduction

CK-102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.

Features

1.An automatic interpret ationof the crack width, directly to the crack width value sare displayed on the screen;

2. Automatic shooting crack photos ,real-time image display;

3. Stored photos, data can be play back viewing;

4.Probe(camera)comes with lighting fixtures, work around the clock, from the light changes;

5.Simplealignmentofcrackscan be automatically reading, without any set up, fool operation;

6.Crackphotoas a standard BMP format, direct shoot storage to any U disk/ SD card;

7.The onlyin the cracks in the photo while preserving fracture images ,the width of the data, scales, zoom factor and the crack number;

9 .Host and the probes hare alithium battery-powered.

10.Referencespecification:GJG125-99"dangerousbuilding appraisal standards.

Themain technicalparameters

1.       The maximum detection range of 0-6mm

2.       Accuracy: better than 0.01mm

3.       Magnification: 40times/20times/13times/10times,optional

4.       40 times the probe: Automatic reading of the measuring range: 0.01-2 .1 mm; Automatic   reading accuracy: better than 0.01mm (± 0.007mm) (40 times the probe);

5.       20 times the probe: Automatic reading of the measuring range: 0.01-4 .2 mm; Automatic reading accuracy: better than 0.02mm (± 0.013mm) (20 times the probe);

6.       The Operating Temperature: -20 ~ 60 ° C

7.       Host Interface: standard USB;

8.       The storage media: can be stored for more than 3000 photos (SD Card is free to expand);

9.       Image storage format: BMP format, 24 bit color / 320 * 240;

10.   Power supply: lithium battery, standby time: 18 hours;

11.   Size: Host 113x70x16.5mm;

12.   Probe: 48x56x58mm;

13.  Weight: host 100 grams, 100 grams of the probe.

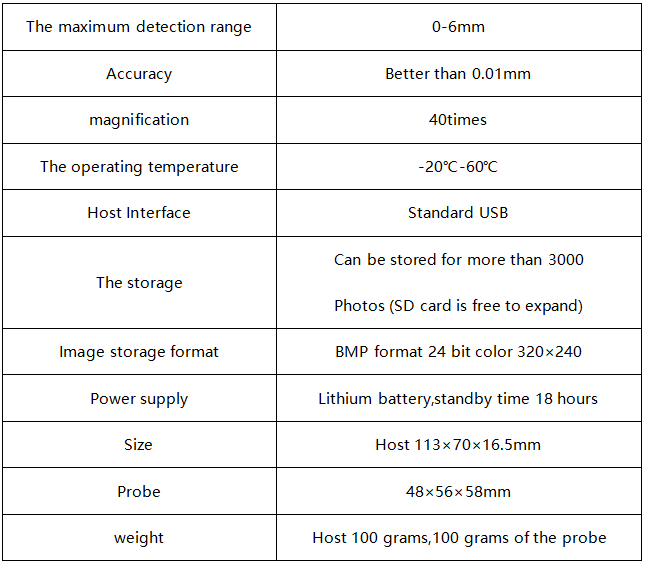

The main technical parameters

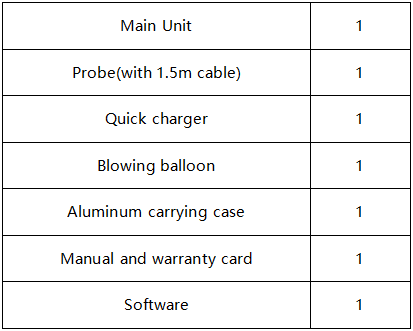

Standard delivery
