1.     Hardness is one of the important mechanic characteristics of the material while the hardness testing is an important method to judge the quality of the metal material or its component parts. The hardness of the metal is correspondent to its mechanic characteristics, and so its mechanic characteristics such as the strength, tiredness, wriggling and wearing out can be tested out approximately through its hardness testing.

2.     Digital multi-functional hardness tester with Brinell, Rockwell, Vickers three testing methods, multi-functional hardness tester of seven grade test force, it can meet the needs of a variety of hardness tests. Test force loading, dwell, unload adopted automatic switching mechanism, test force transformation obtained by the rotation of hand wheel, indentation measured by precision encoder and sensor and calculated the hardness value by the internal system program. So it is easy to operate, fast and intuitive interface, basically, no human operation error, with its high sensitivity, stability, it is suitable for workshops and laboratories.

The main function as follows：

2.1    Brinell, Rockwell, Vickers three testing methods；

2.2    Conversion of different hardness scales

2.3    Selection of dwell time

2.4    Modifications of time and date

2.5    Output of testing results

2.6    RS232 interface for optional functions, this model can save testing results and browse testing pages.

Technical specifications

1. The Power Source and the Voltage:       AC220V±5%, 50-60 Hz

2.      Time-delayed control:                 0-60 seconds, adjustable

3.      The Distance from the Indenter Center to the Instrument Body:    165mm

4.      Overall Dimension (Length×Width×Height):     551×260×800 mm

5.      The Net Weight of the Tester:                    80kg (Approx)

Rockwell Hardness

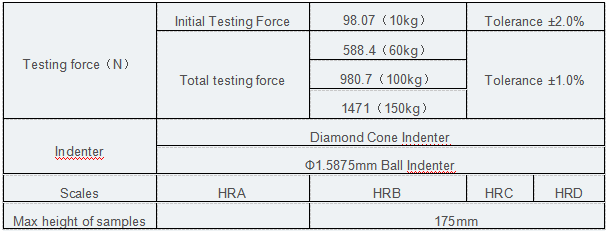

1. Specifications of Rockwell Hardness

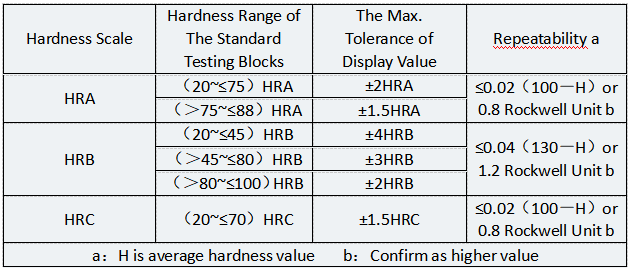

2. The Tolerance of Rockwell Hardness Display Value

 Brinell Hardness

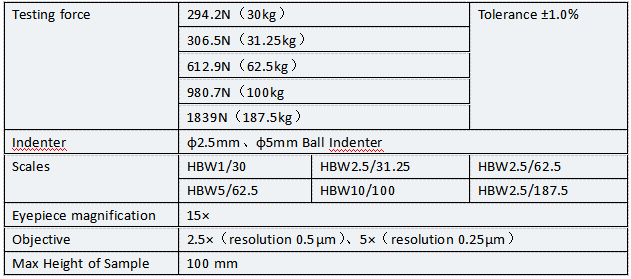

1. The Technical Specification of Brinell Hardness Tester

2.The Tolerance and Repetition of Displayed Value for Brinell Hardness Tester

3.Technical Specifications of Vickers Hardness

4. The Tolerance and Repetition of Displayed Value for Vickers Hardness Tester

Accessories（Packing list）

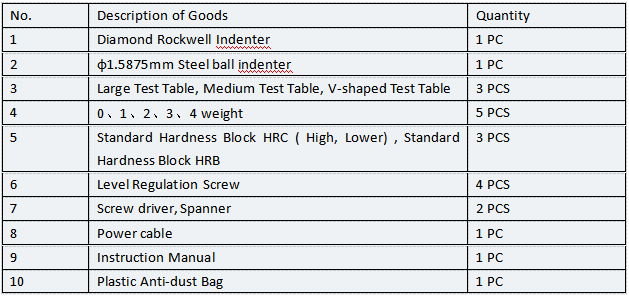

1. Accessories Kit of Main Body

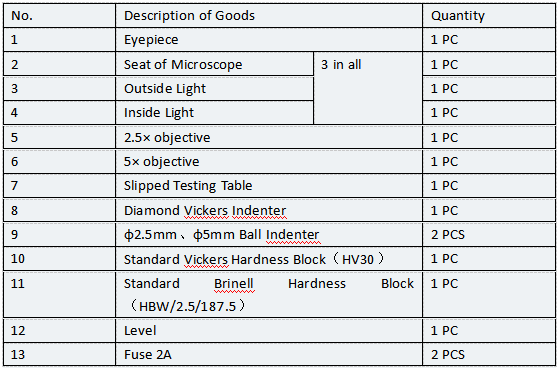

2.  Accessories Kit of Microscope
