Introduction

   The concrete test hammer is an instrument which is easy to use, for quick and approximate measurement of

the resistance to pressure of manufactured concrete products. The principles on which it works are based on the

rebound impact of a hammer on a piston which rests against the surface of the concrete products. The Greater

the resistance of the concrete, greater is the rebounded impact. By reading this rebound impact on a scale and

relating it to curves or table on graphs supplied with the instrument, the resistance to compression in MPA or

PSI can be found.

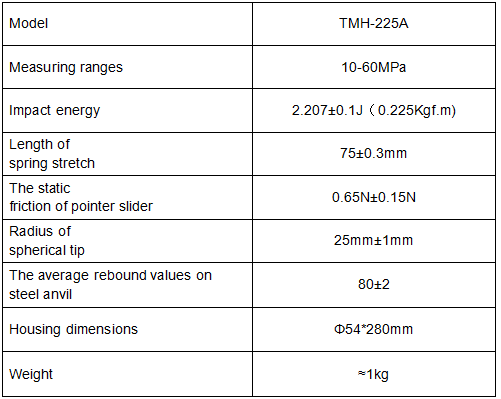

Technical Specification
