Features

OLED display of 128×32 matrix

Converts to all common hardness scales (HL.HV,HB,HRC,HRB,HRA,HS).

Easy to use Menu driven system

With micro USB interface, multiple communication modes are adopted to meet customized requirements of various users

Memory of 600 groups data

Upper and lower limit of hardness can be preset; with alarm

Test value software calibration function

Working voltage: 3.7V rechargeable Li-lon battery

Continuous working period: approx.. 60 hour

Bluetooth included, can be connected with printer through Bluetooth

The machine also include interface to connect with impact device C, DC, G, D+15, DL,E probe.

Smart and skid proof design

Charging indicator

THL278: integrated with D impact device for normal hardness testing

Note: The product uses the international popular streamlined plastic shell, ergonomic design. Surface anti-skid treatment, feel fine, soft, light weight and durable. And has excellent resistance to electromagnetic, anti-vibration and other interference.

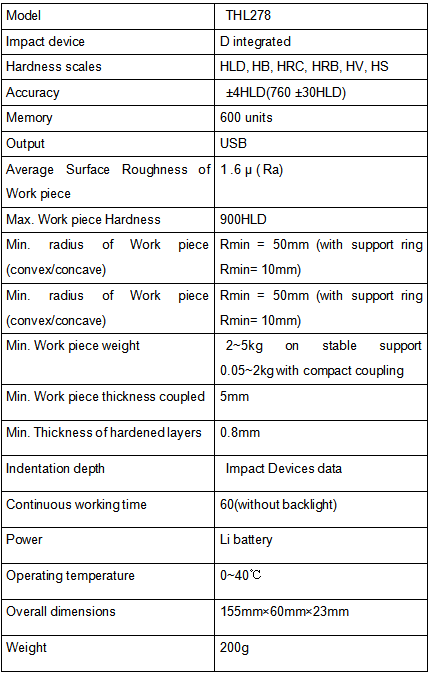

Specifications

Main Application

The assembled machinery and permanently installed parts

Die cavity of molds

Heavy work piece

Failure analysis of pressure vessel, steam turbo-generator set and other large equipment

Testing of parts in confined areas or on gear teeth

Bearings and other parts

Material identification of the metal material warehouse

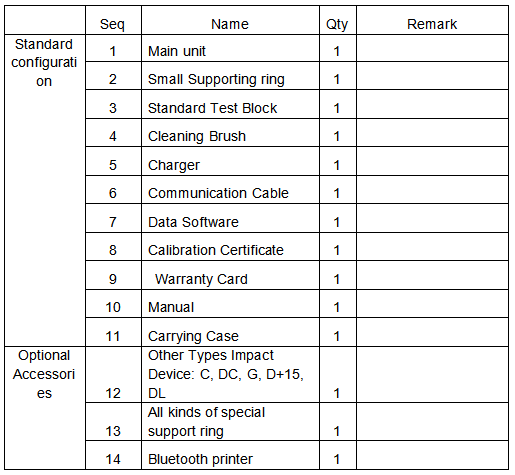

Standard Configuration
