Leeb Hardness Tester THL360

Advantages

1. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

2. Large 3 inchi screen LCD, showing all functions and parameters. With EL background light.

3. Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.

4. Test at any angle, even upside down.

5. Large memory could store 500 groups (Relative to average times 32～1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.

6. Battery information showing the rest capacity of the battery and the charge status.

7. Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

8. NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

9. Auto power off to save energy.

10. Excellent after-sale service system for high quality products--two years’ guarantee and all life maintenance.

11. Easy to buy and comfortable to use.

Main Application

Die cavity of molds.

Bearings and other parts.

Failure analysis of pressure vessel, steam generator and other equipment.

Heavy work piece.

The installed machinery and permanently assembled parts.

Testing surface of a small hollow space.

Material identification in the warehouse of metallic materials.

Rapid testing in large range and multi-measuring areas for large-scale work piece.

Measuring range：HLD（170～960）HLD

Measuring direction：0°~360°

Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

Display：segment LCD

Data memory：500 groups max.（relative to impact times 32～1）

Printing paper: width is （57.5±0.5）mm, diameter is 30mm.

Battery pack: 7.4V-Li battery

Battery charger: 9V/500mA

Continuous working period：about 150 hours（With backlight off, no printing）

Communication interface：USB2.0

Outline dimensions：

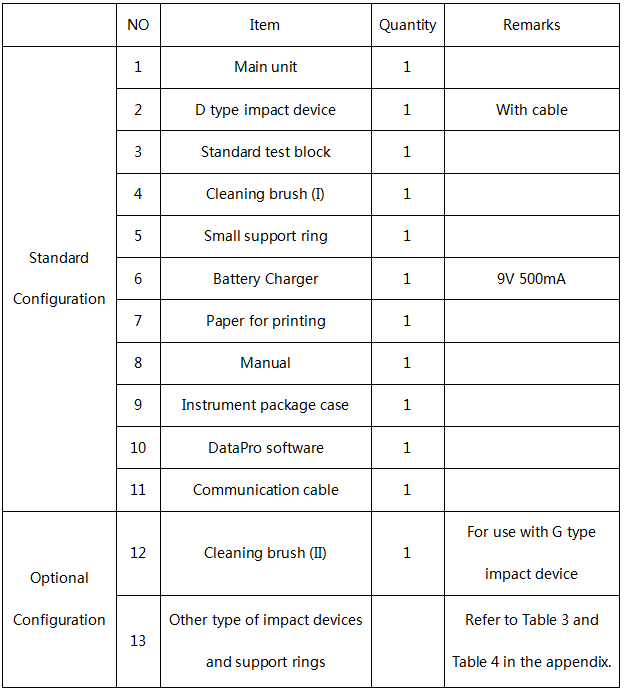

 Configuration

Table 1-2
