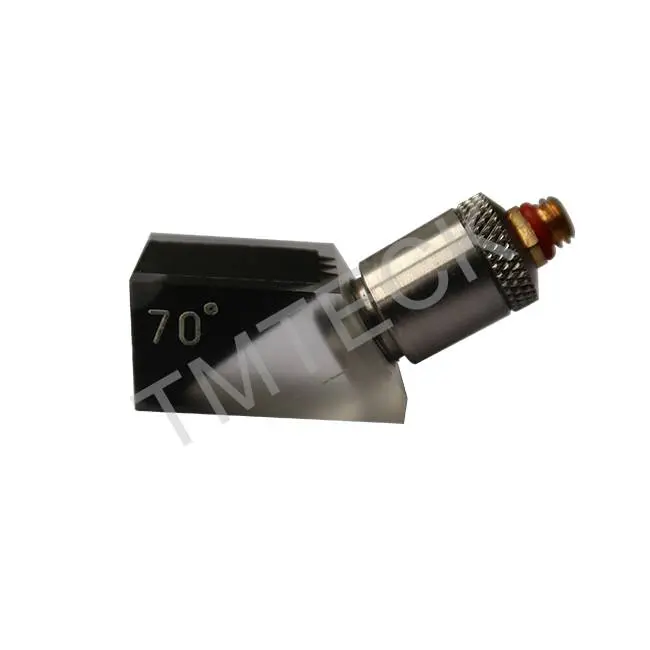

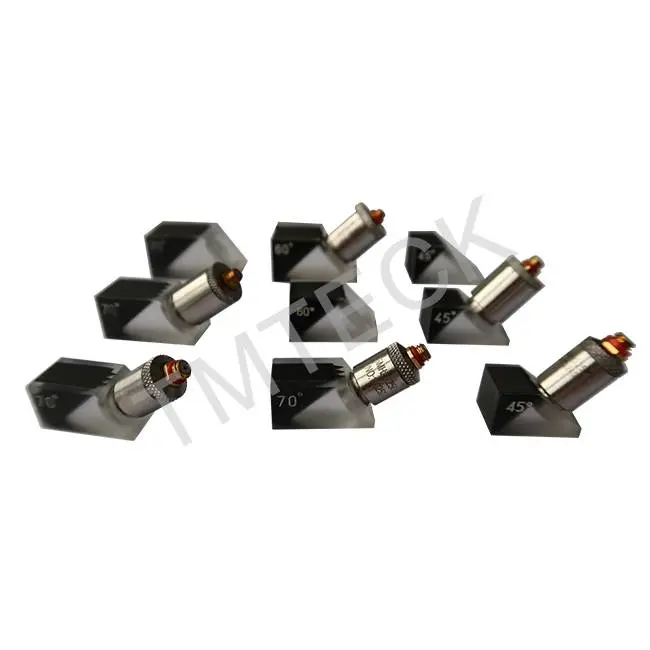

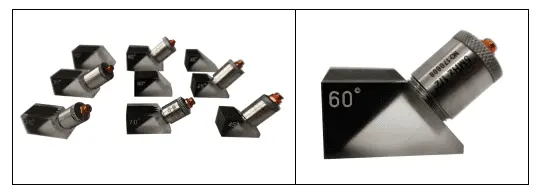

Ultrasonic Angle Beam Probe Twb Screw In Wedge Type 5 1.5 Mhz Frequency

Need A Quote ?

We love to hear from you !

Product details Parameters


Applications:
●General weld inspection,smaller object,thinner section
●Tube,pipes,pressure vesseis,containers
●Pumps,valve housing
●Wheel rims
Features:
●Good Resolution and Sensitivity
●Custom wedge angel and curvatures can be special ordered
●Both quick change and screw mounted style available
●Microdot or Subvis connector top mount

Type

Freq. MHz

Crystal Size inch

Connector

TWB-2.25-1/4

2.25

1/4

Microdot equivalent

TWB-5-1/4

5

1/4

TWB-10-1/4

10

1/4

TWB-2.25-3/8

2.25

3/8

TWB-5-3/8

5

3/8

TWB-10-3/8

10

3/8

TWB-1.5-1/2

1.5

1/2

TWB-2.25-1/2

2.25

1/2

TWB-5-1/2

5

1/2

TWB-10-1/2

10

1/2
