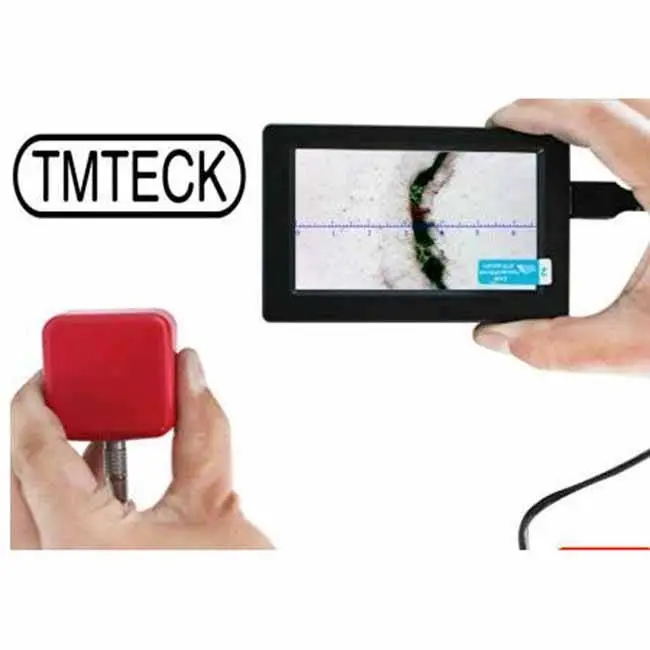

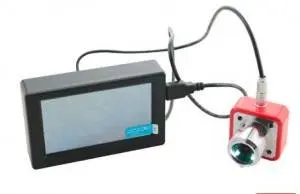

TMCK-12 Crack Width Gauge Meter

TMCK-12 Crack Width Gauge Meter Can Be Widely Used in Bridges,Tunnels, Buildings, Concrete Pavement, Metal Surface Crack Width

Brief Introduction
TMCK-12 of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.

Features:
1. An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen;
2. Automatic shooting crack photos, real-time image display;
3. Stored photos, data can be playback viewing;
4. probe (camera) comes with lighting fixtures, work around the clock, from the light changes;
5. Simple alignment of cracks can be automatically reading, without any set up, fool operation;
6. Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;
7. The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number;
8 . Host and the probe share a lithium battery-powered.
9. Reference specification: GJG125-99 “dangerous building appraisal standards.

The main technical parameters:
1. The maximum detection range of 0-8mm
2. Accuracy: better than 0.01mm
3. Magnification: 40times/20times/13times/10times, optional
4. 40 times the probe: Automatic reading of the measuring range: 0.01-2 .1 mm; Automatic reading accuracy: better than 0.01mm ( 0.007mm) (20 times the probe);
5. 20 times the probe: Automatic reading of the measuring range: 0.01-4 .2 mm; Automatic reading accuracy: better than 0.02mm ( 0.013mm) (20 times the probe);
6. The Operating Temperature: -20 ~ 60 C
7. Host Interface: standard USB;
8. The storage media: can be stored for more than 3000 photos (SD Card is free to expand);
9. Image storage format: BMP format, 24 bit color / 320 * 240;
10. Power supply: lithium battery, standby time: 18 hours;
11. Size: Host 113x70x16.5mm;
12. Probe: 48x56x58mm;
13. Weight: host 100 grams, 100 grams of the probe.

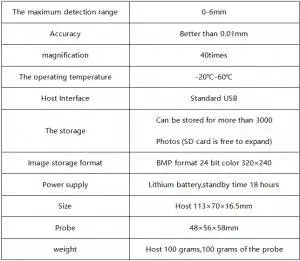

Technical Parameter

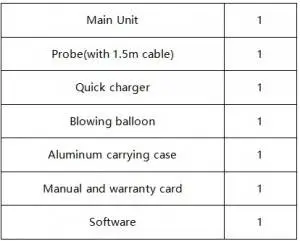

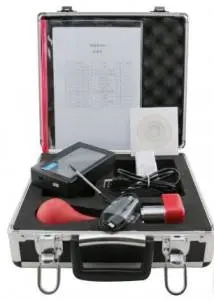

Standard configuration:
