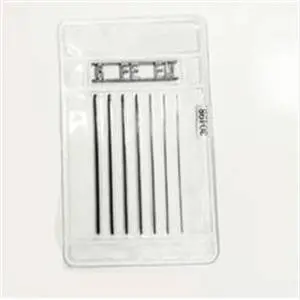

DIN 54 109 Wire Type Image Quality Indicators are similar to the EN 462-1 I.Q.I’s, the wire diameters are the same, and there are the same wire numbers in each size of indicator. The only difference being that the lead monogram reads DIN rather than EN.

Product Parameters:
1) Dimension :(45*40*1.2)mm
2) Weight:6g
3) Wire  :

Wire material :Aluminum
Wire length: 10mm, 25mm, 50mm
limit deviation for wire diameters:
Wires up to 0.125 mm  ± 0.005 mm
Wires 0.125-0.50 mm  ±0.01mm
Wires 0.50-1.60mm ±0.02mm
More than 1.60 ±0.03 mm
