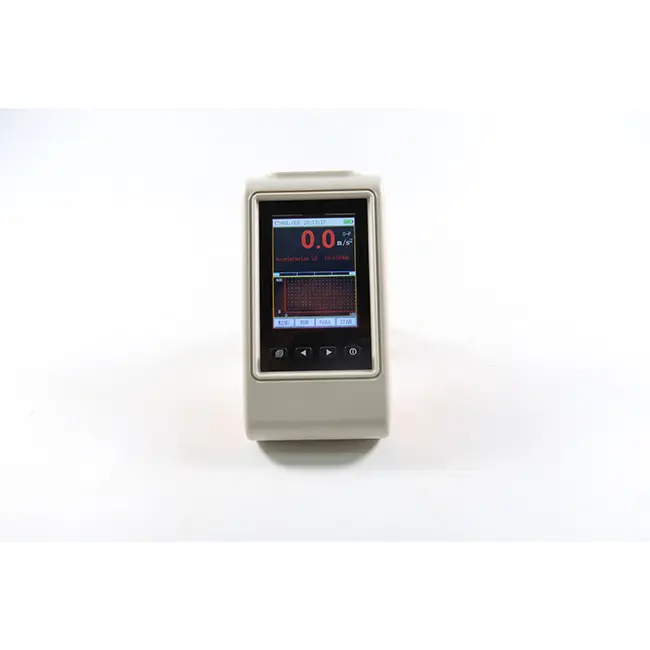

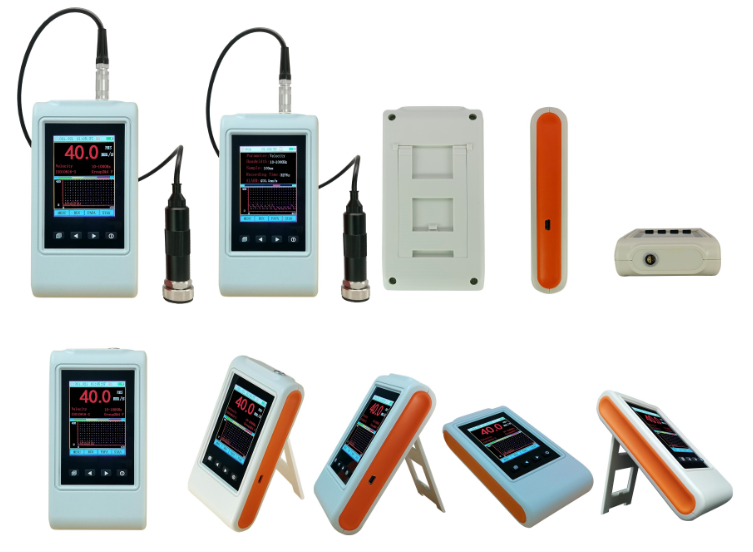

TMV600 Portable Vibration Recorder


Need A Quote ?

We love to hear from you !

Product details Parameters


TMV600 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rocord real time vibration curve.

The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.

Built in iso10816 fault diagnosis standard, which can automatically diagnose the fault of the tested equipment.

The technical specifications of LV1000 comply with the requirements of GB 13823.3. TMV600 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

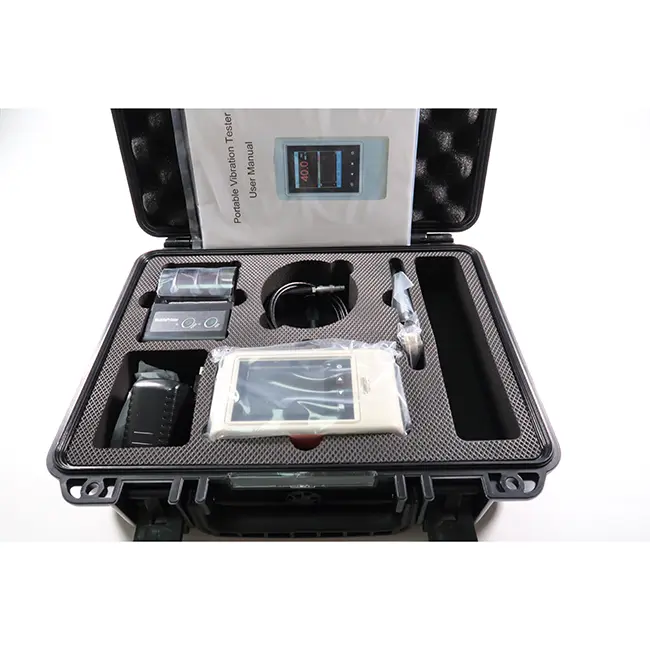

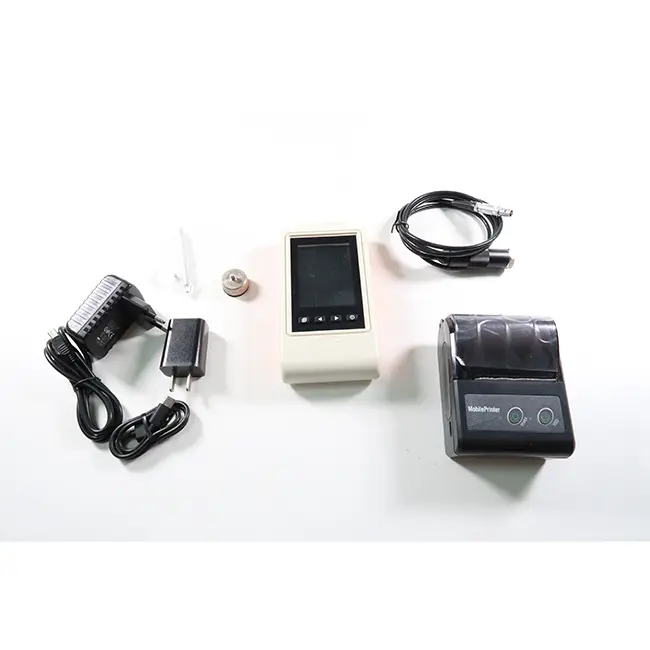

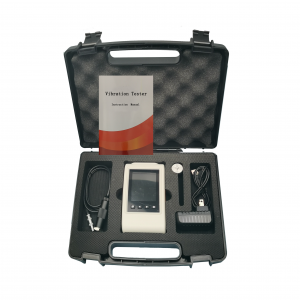

Configuration:



Standard configuration

NO.

ItemQuantity

1

Main uni.1

2

Power Adapters:output:5V/1000mA1

3

Piezoelectric sensors1

4

Magnetic seat1

5

Manual1

6

Package case1

Optional configuration

3

Probe1

4

Communication cable1

Specifications:

Testing range


(Metric)

Acce: 0.1 ~ 400.0m/s2(peak)Velo: 0.1 ~ 400.0mm/s(RMS)


Disp: 0.001 ~ 4.000mm(peak-peak)

Freq rangeAcceleration:  10Hz ~ 1KHz, 1K Hz ~ 10KHzVelocity:      10Hz ~ 1KHz


Displacement: 10Hz ~ 500Hz

Data memory150 ×100 pieces of patrol data30 ~ 480 pieces of record data
Temp0℃ ~ 40℃
Tolerance±5%
Humidity≤80RH
DisplayTFT:2.8”,320×240 pixels with RGB
Data interfaceUSB(RS232/RS485),Bluetooth
Overall dimensions140×76×28
PrinterWireless Bluetooth printer(Optional)
Weight180g
BatteryRechargeable Li battery,2000mAh
Continuous working timeContinuous operation for about 20 hours, Standby for 80 hours
