TMTECK—HD95 Holiday Detector Intelligence Pulsed High Voltage Porosity Detector 1KV～50KV

Need A Quote ?

We love to hear from you !

Product details Parameters

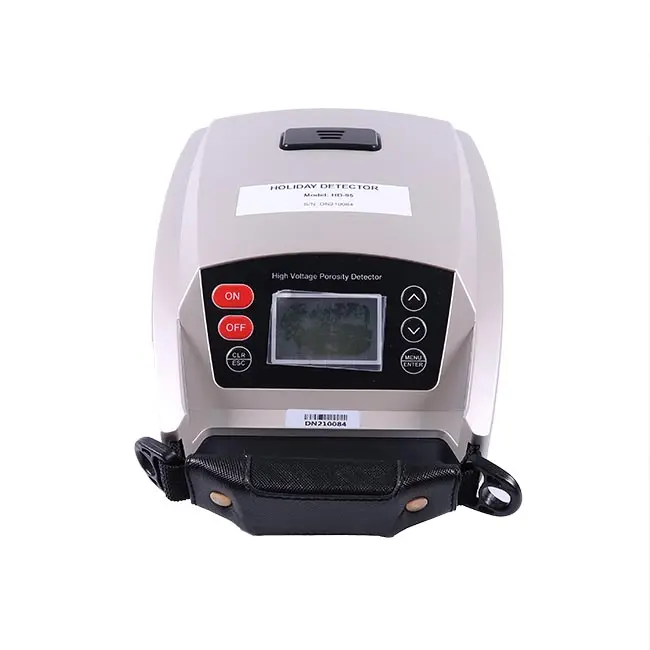

TMTECK—HD95 holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3%reading).It  can adjust its value of voltage according to the thickness of protecting coating. HD-95 use lithium battery for power source, it is also can be used in field.


Parameter

Test voltage range1KV～50KV
Thickness range0.1～36.5mm
High voltage outputPulse
Voltage display3 digit
Resolution0.1KV
Voltage precision±(0.1kv+3%)
Max leak record999 maximum
Way of alarmingHeadphone buzzer and light
ShutdownAuto and Manual
Display128*64 LED screen with backlight
Power≤6W
Size240mm*165mm*85mm
Battery12V 4400mA
Working time≥12 hours(Max voltage)
Charging time≈4.5 hours
Voltage of adapterInput AC 100-240VOutput 12.6V 1A
Probe wireClose to 1.5m
Earth lead wire2*5m  black/black
Fuse1A


Standard configuration :

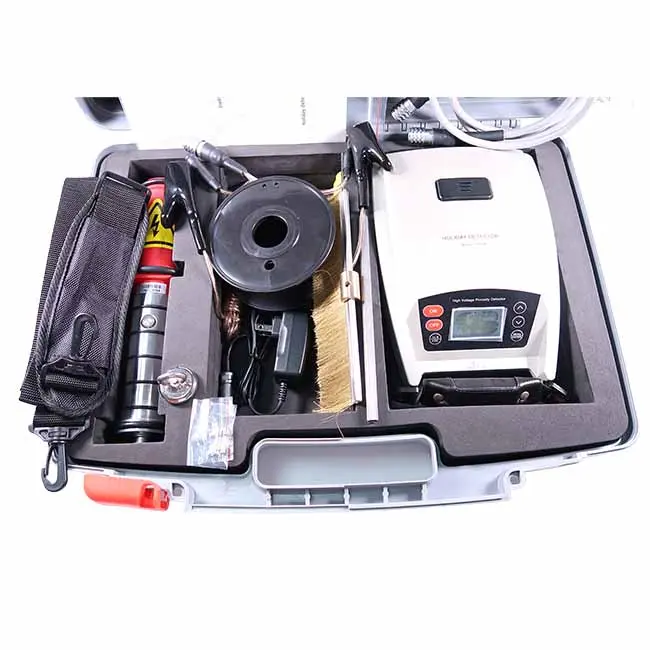

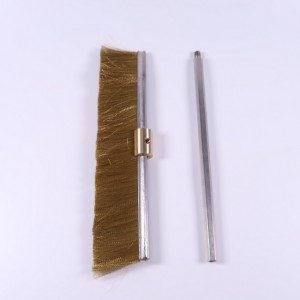

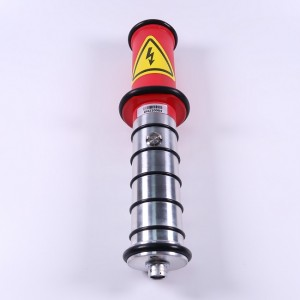

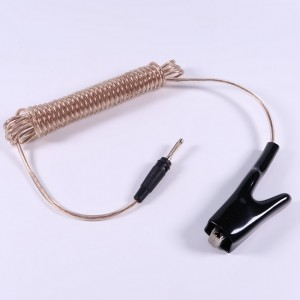

Main unit , high-voltage probe, probe connecting cable, fan-shaped probe brush, flat brush, connecting rod, grounding wire, charger, strap, magnetic grounding pole, ABS carrying case, manual, certificate, warranty card, fuse
