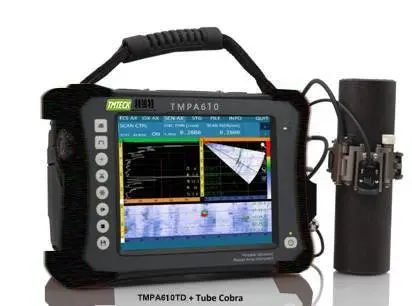

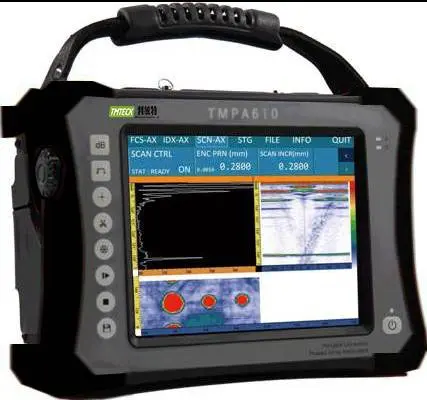

TMPA610 AND TMPA610TD
Portable Phased Array Ultrasonic Flaw Detector
Introduction
TMPA610 series is a portable 64-CH phased array ultrasonic flaw detector originally developed by TMTECK. It’s water&oil -proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio,with UT ,PA&TOFD functions all in.
★ File & Entry Management System for Flexible Bridging between Setting(Focal Law & Model), Calibration and Inspection
★ Modular Configuration : L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
★ 3D Simulation Model
★ Image analysis
★ Natural Structure of Heat Dissipation
★ Dynamic Depth Focusing(DDF)
★ Smooth Filtering
★ Touch Screen
★ ACG Calibration
★ TCG Calibration
Feature

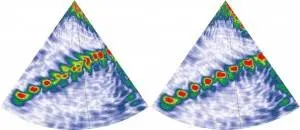

I Dynamic Focusing
Dynamic Focusing Off Dynamic Focusing On

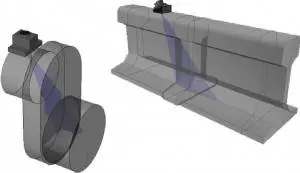

II 3D Simulation Model
The 3D simulation scheme can be customized to offer one-for-all solutions.

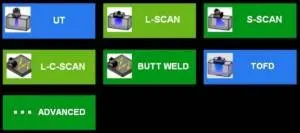

III APP Menu
Menu of the software is shown in the manner of APP.
It can be cut down or enlarged accordingly if asked by the users.

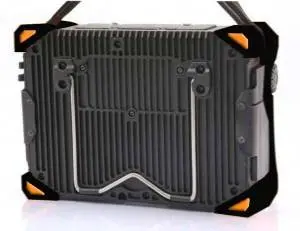

IV Metallic Housing
To strengthen the instrument, both shielding and heat-dissipating
V Protective Pedestal
To prevent any damage to either the instrument or the object
Specification
Channel Configuration
| Mode | PA | UT | TOFD(TMPA610TD) | |||
| Channel | 16:64 | 2 | 2 |
PhysicalSpecification
| Display | 11-inch 800X600 TFT color display | |
| Transducer | I-PEX 160-pin PA transducer port; Lemo-00 conventional | |
| Ports | transducer Port, for either T-R or T&R | |
| USB2.0 Port: 2(qty) | ||
| HDMI; encoder | ||
| I/O Ports | LAN(Gigabit-NIC); | |
| WIFI | ||
| I/O (commissioning) | ||
| 2D Encoder | ||
| Memory | In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G); | |
| External: USB drive | ||
| Weight | 3.5Kg (with 1 battery) | |
| Dimension | 284mm×202mm×95mm | |
| Power | AC：100～240V，50～60Hz；DC：12V | |
| Supply | ||
| Charging | (battery) within or individually | |
| Battery Life | 6 Hours | |
| Working | 24W | |
| Power | ||
| Language | English | |
| Temperature | Ambiance：-20℃～50℃ | |
| Conditions | Storage：-20℃～60℃ | |
| IP | 54 | |
PerformanceSpecification
| Tode | PA | UT | TOFD（TMPA600TD) | |
| PRF | 50Hz～10kHz | 50Hz～5kHz | 50Hz～5kHz | |
| Bipolar, | Negative Square | Negative Square | ||
| Voltage | ±45～±100V, | Wave, -75V～-250V, | Wave, -75V～-250V, | |
| with 5V per step | with 25V per step | with 25V per step | ||
| Pulse Width | 20ns～800ns, | 20～800ns, with 5ns | 20～800ns, with 5ns | |
| with 5ns per step | per step | per step | ||
| Damping | 50Ω | 80Ω / 400Ω | 80Ω / 400Ω | |
| Sampling | 125MHz | 200MHz | 200MHz | |
| Rate | ||||
<td valign="bottom" width="123"
<tr style="box-sizi
| Delay | 2.5ns | N/A | N/A | |
| Precision | ||||
| Rx Delay | 0～40us | N/A | N/A | &l
|
