The TR1 Scanners are designed to detect composite and other smooth surface
materials, Such as carbon fiber and other composite materials commonly used in
aerospace industry. The wheel scanner also provides a feasible alternative liquid
immersion detection technology.

Unique tire materials to ensure high quality and immersion ultrasonic testing. For
wheel scanners, even in difficult scanning positions, minimum coupling and pressure
are needed to provide good coupling and strong signal.

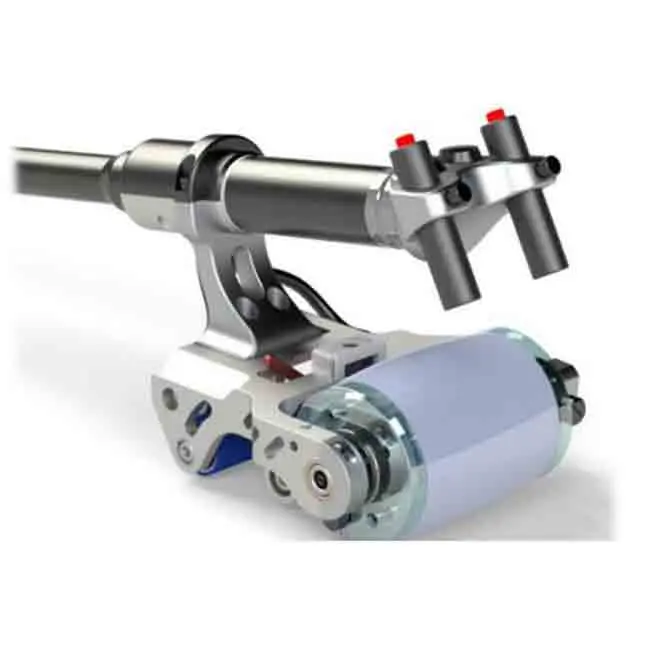

Roller scanner TR1, its ergonomic design makes it the perfect tool for manual scanning.

TMTeck Encoder with various connector is available on request, support Olympus,
GE, ZETEC, etc.

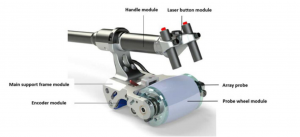

TR1 roller scanner adopts the standard modular design, which can be used to
replace different frequency probes according to the detection requirements. Its basic
modules: array probe, probe wheel module, main support frame module, laser button
module, grip module, encoder module.

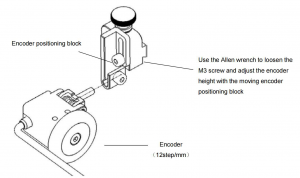

Encoder installation instruction

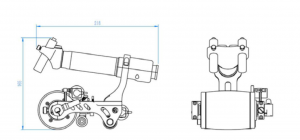

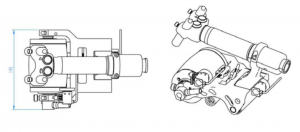

Specifications of wheel scanner

Ordering information
