FEATURES
1.Waterproof
2.Small dimensions
3.Encoder resolution is engraved on the wheel
4.Removable encoder wheel
5.Double O-ring tire for better adherence
6.Metallic strain relief for cable protection
7.Spring-loaded pin for encoder attachment
8.Two M3 threaded holes on top of the casing for rigid attachment
9.DE version is compatible with the Omniscan instrument (with DE15 connector type)
10.BX version is compatible with the FOCUS LT instrument (with Bendix connector type)

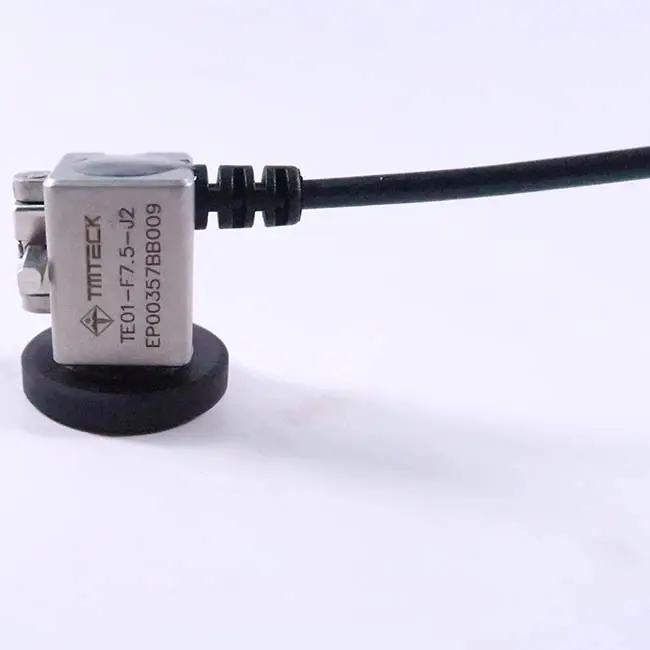

The Mini-Wheel Encoder is used for the positioning and dimensioning of defects in the
scan axis. It can synchronize data acquisition with probe movement.
The Mini-Wheel Encoder is waterproof and compatible with the HST-X04 scanner, as well
as Olympus NDT standard PA wedges that can be connected with the included bracket kit.
This miniature encoder is built with an aluminium casing, a stainless steel wheel, and has a
resolution of 12 counts per millimeters (304.8 counts per inch).

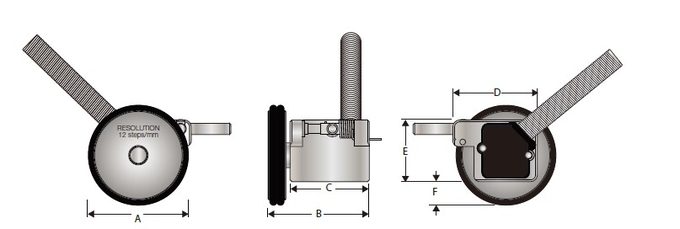

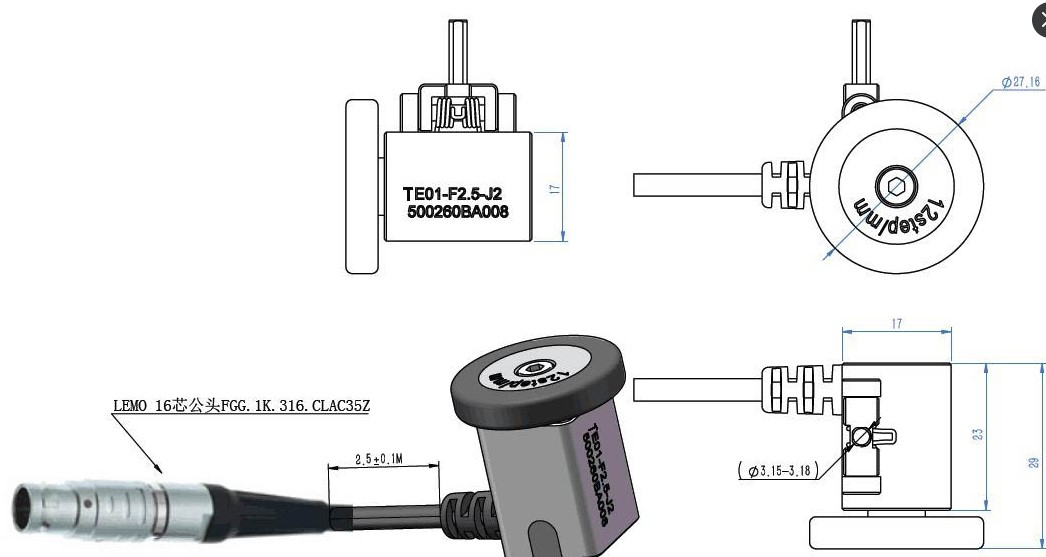

A = 27 mm (1.06 in.) | D = 24 mm (0.94 in.) |
B = 28.7mm (1.12 in.) | E = 17.5 mm (0.69 in.) |
C = 22.5 mm (0.89 in.) | F = 6 mm (0.23 in.) |

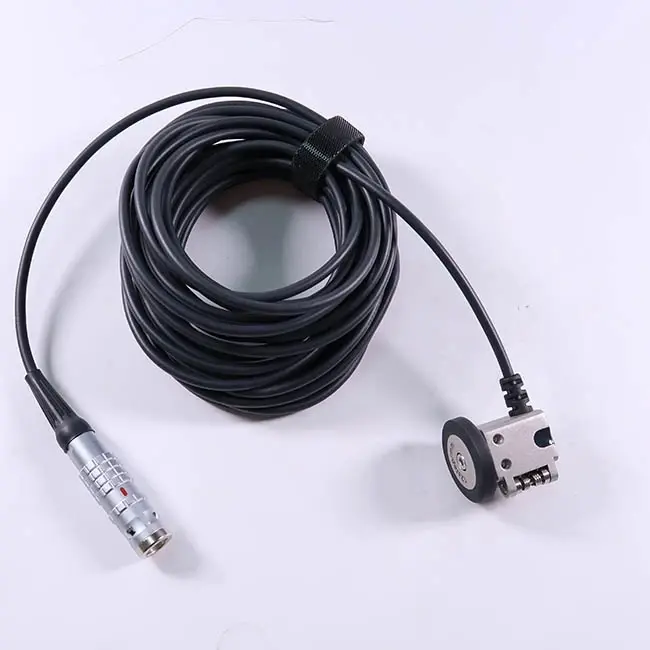

Part number, Cable length (m), Connector
TE01-F2.5-J2 | 2.5 |
TE01-F5-J2 | 5.0 |
TE01-F7.5-J2 | 7.5 |

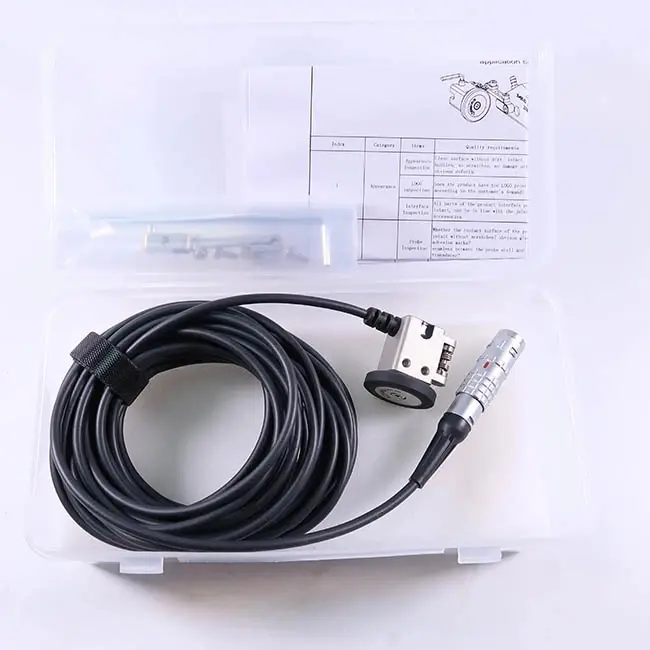

Standard Inclusions
? 1 encoder with standard wheel
? 1 bracket kit
? 1 Allen key screwdriver for bracket attachment
? 1 carrying case
