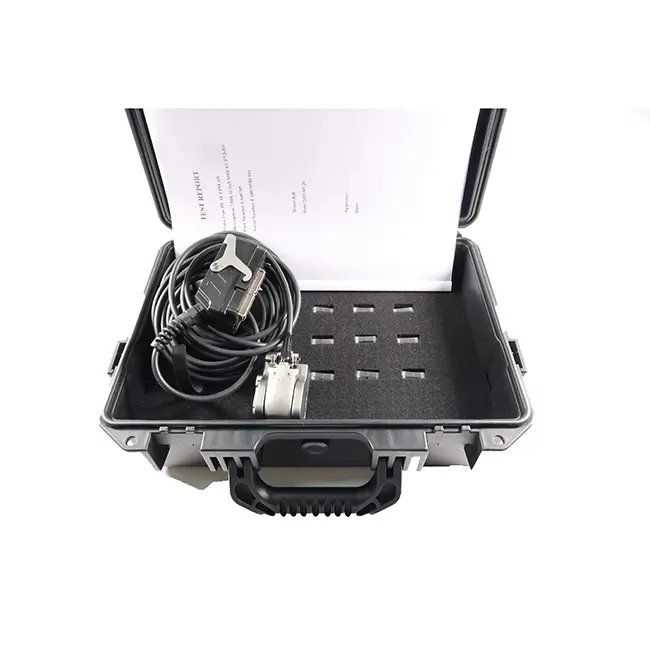

TMTECK Dual Linear array probe (DLA) with Kit of nine Rexolite wedges compatible with REX1 IHC-RW DLA corrosion probe


Need A Quote ?

We love to hear from you !

Product details Parameters

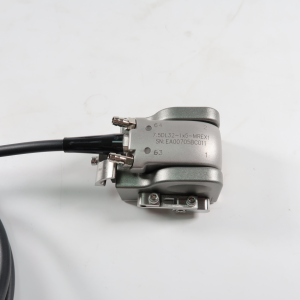

TMTeck Standard Phased Array Probe, 7.5 MHz, Dual 32 Element Arrays, 32x5 mm Total Active Aperture,

1.0 mm Pitch, 5 mm Elevation, Integrated Rexolite Delay Line, Case Type 1

PVC Sheathing, 7.5 m Cable Length, Omniscan Connector.

Includes Irrigation, Scanner Holes, Carbide Wear Face Adjustable Ring, and Removable Wedge

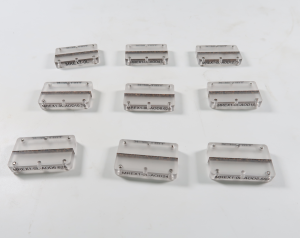

Kit of nine (9) Rexolite wedges compatible with REX1 IHC-RW DLA corrosion probe.

Kit includes: One (1) flat wedge to cover from flat down to 24in OD plus eight (8) AOD wedges to cover the range from 24in OD down to 4.5in OD.
