Product details Parameters

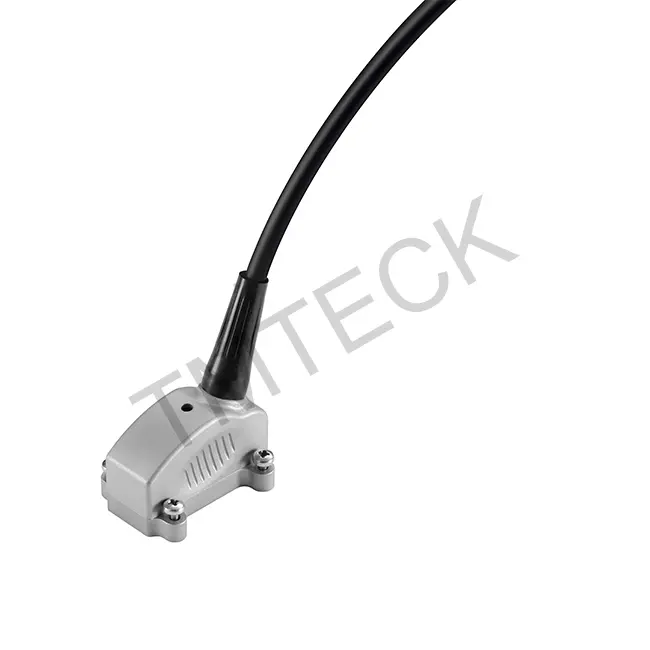

Carbon Steel Weld Probe: Specific
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.carbon steel weld series:
3.Thick weld inspection from 3 mm to 60 mm
4.Manual or automatic detection
5.Wide thickness measurement
6.Excellent signal to noise ratio
7.Moderate constitution and large monitoring range
Applications
1.Thick plate material and weld
2.Forgings, noise or granular materials
3.Moderate constitution and large monitoring range
Specification
Probe | Model | Element | Freq (MHz) | E-Nos | Pitch | Active (mm) | Elev.(mm) | Size (LxWxH) |
| TS115 | 2.25L32-1.0×10 | Linear | 2.25 | 32 | 1.00 | 32.0 | 10.0 | LxWxH:40x28x25 (mm) LxWxH:1.57×1.1×0.98 (in) |
2.25L64-0.5×10 | Linear | 2.25 | 64 | 0.50 | 32.0 | 10.0 | ||
5L32-1.0×10 | Linear | 5 | 32 | 1.00 | 32.0 | 10.0 | ||
5L64-0.5×10 | Linear | 5 | 64 | 0.50 | 32.0 | 10.0 | ||
7.5L32-1.0×10 | Linear | 7.5 | 32 | 1.00 | 32.0 | 10.0 | ||
10L64-0.5×10 | Linear | 10 | 64 | 0.50 | 32.0 | 10.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
TS115 | N0L | 0°LW | 40°~70° | LxWxH: 40x28x25 (mm) LxWxH : 1.57×1.1×0.98 (in) |
| N60L | 60°LW | 40°~70° | ||
| N55S | 55°SW | 40°~70° | ||
| N55S-IHC | 55°SW | 40°~70° | ||
| N55S-AOD500 | 55°SW | 40°~70° | ||
| N55S-IHC-AOD500 | 55°SW | 40°~70° |
Quick Details
Model Number:5L32-1.0×10-TS115
Element:32
Element Shape:linear
Size:LxWxH 40x28x25(mm)1.57×1.1×0.98(in)
Warranty:12 Months
Case:Stainless steel
Application:Wide thickness measurement
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
