Product details Parameters

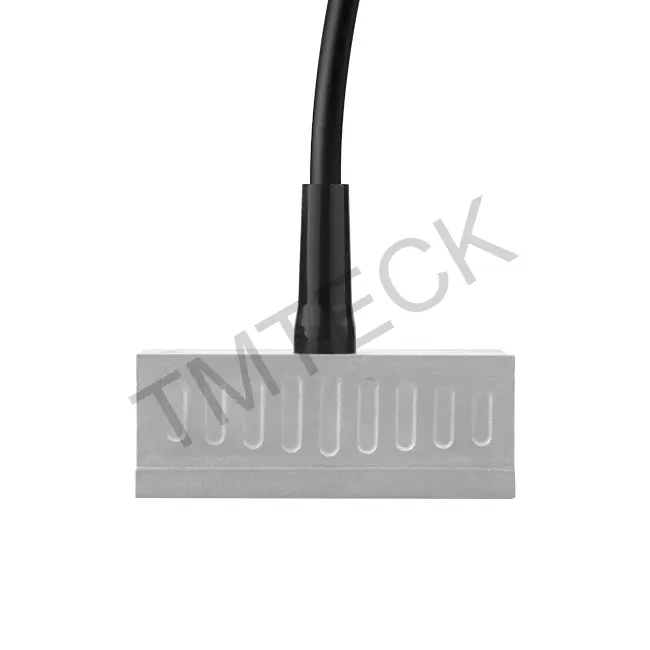

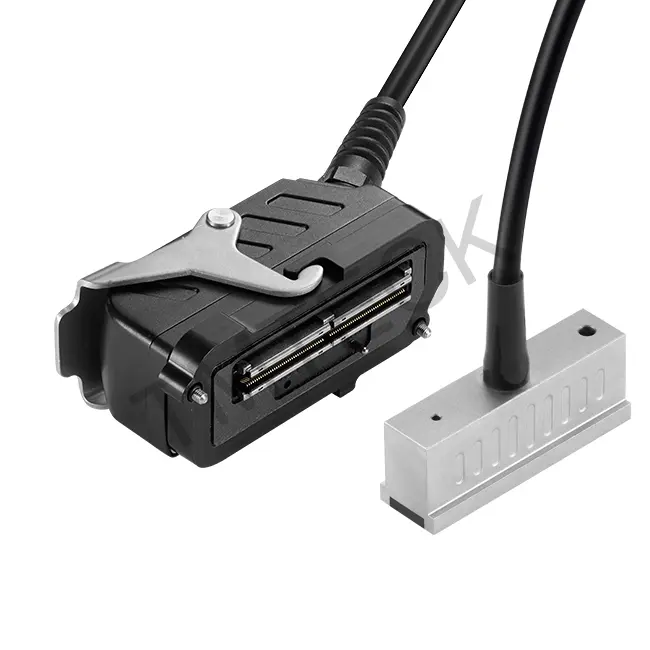

Near-wall narrow-shell probe: small width ensures a easy near-surface resolution.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Near-wall probes have shorter dead zones at both ends
3.Widely used in composite channel inspection
4.Can be used for C-scan detection of composites (delamination, debonding and porosity)

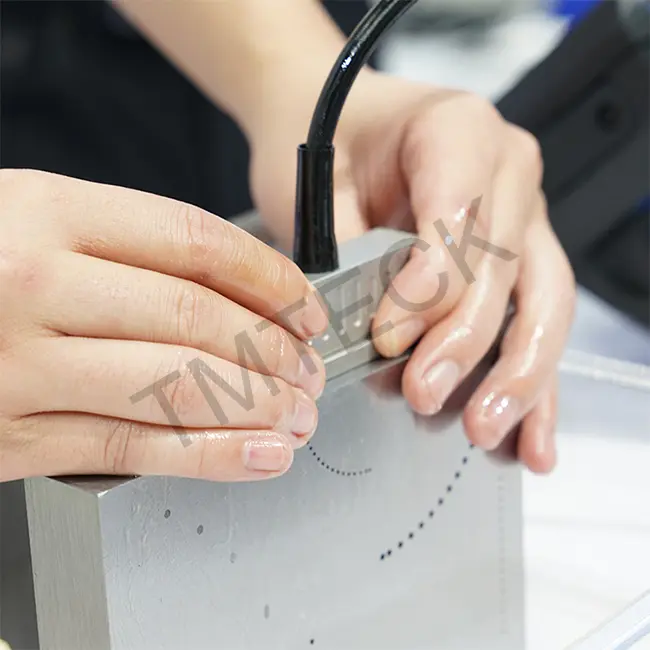

5.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
Probe | Model | Compatible Model | Element | Freq (MHz) | E-Nos | Pitch | Active (mm) | Elev. (mm) | Size(LxWxH) |
TS13/NW1 | 1L32-2.0×7 | 1L32-64x7 | Linear | 1 | 32 | 2.00 | 64.0 | 7.0 | 66x19x25 (mm) (in) |
2.25L64-1.0×7 | 2.25L64-64x7 | Linear | 2.25 | 64 | 1.00 | 64.0 | 7.0 | ||
3.5L64-1.0×7 | 3.5L64-64x7 | Linear | 3.5 | 64 | 1.00 | 64.0 | 7.0 | ||
5L64-1.0×7 | 5L64-64x7 | Linear | 5 | 64 | 1.00 | 64.0 | 7.0 | ||
7.5L64-1.0×7 | 7.5L64-64x7 | Linear | 7.5 | 64 | 1.00 | 64.0 | 7.0 | ||
10L64-1.0×7 | 10L64-64x7 | Linear | 10 | 64 | 1.00 | 64.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:1L32-2.0×7-TS13/1L32-64x7-NW1
Element:32
Element Shape:linear
Size:LxWxH 66x19x25(mm) 2.60×0.75×0.98(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
