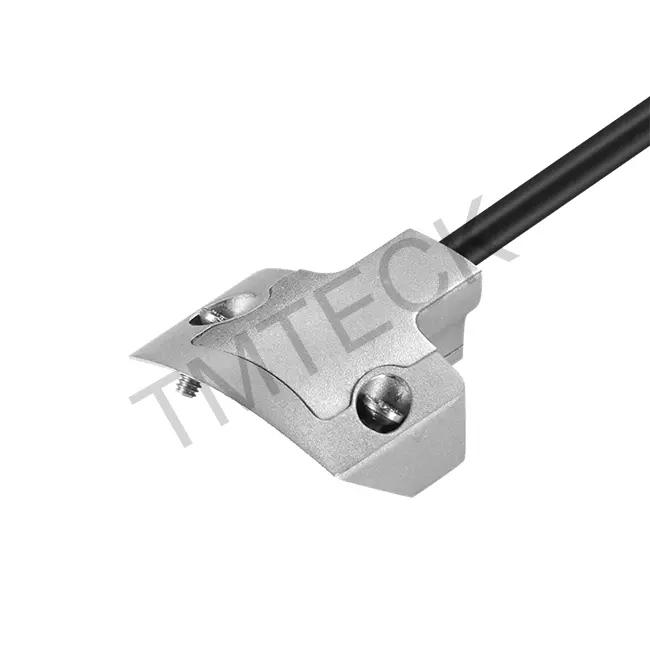

Internal focus probe: It acts on the space-constrained area, improves the

detection accuracy, and reduces the near-surface dead zone. It has a very important application in the detection of thin-walled small-diameter tubes.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Acoustically matches Rexolite

3.Standard fittings with an outer diameter in the range of 21 mm to 115 mm, limited space detection

4.Smaller in size , internal focus improves the ability to detect small defects on thin-walled pipe fittings

5.Inspect minor defects Easy installation and manipulation from one side of a row of  pipes, high accuracy helps to detect small defects.

6. Compatible with wedges for most beam angle detection applications

7. Combined with the scanner, complete most of the complex parts inspection.

Applications

1.Thin Wall application

2.Small diameter pipe weld inspection

3.Boiler tube

4.Low clearance

5.Process pipes

Specification

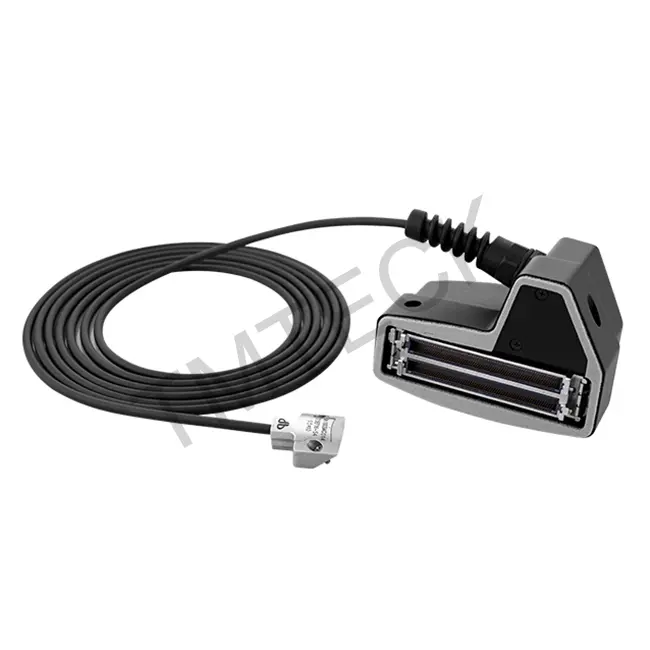

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include  frequency, element number and pitch,etc.

Quick Details

Model Number:10EF32-0.25×7-TS46/10EF32-8x7-A15

Size:LxWxH 0.93×0.55×0.93(in)/23.5x14x23.5(mm)

Warranty:12 Months

Case:Stainless steel

Element:32

Application:Small diameter pipe weld inspection

Customization:yes

Type:phased array probe

Element Shape:Interal Foucs

Color:Silver

MOQ:1
