Product details Parameters

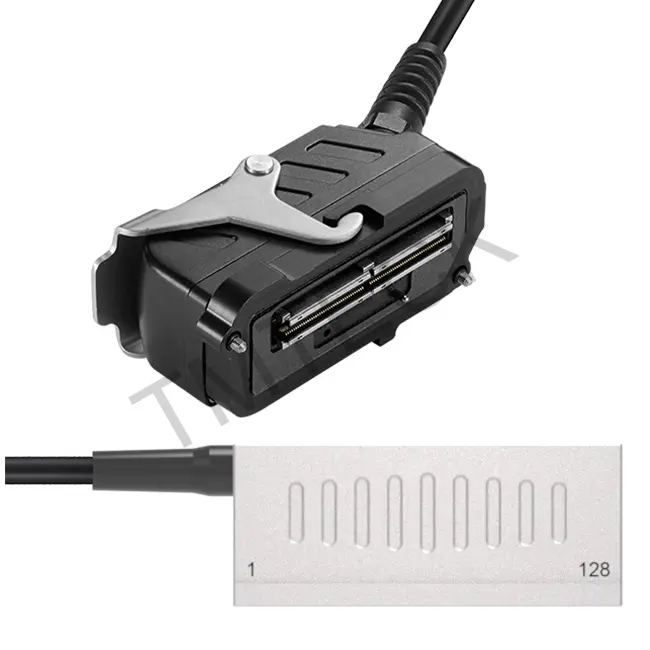

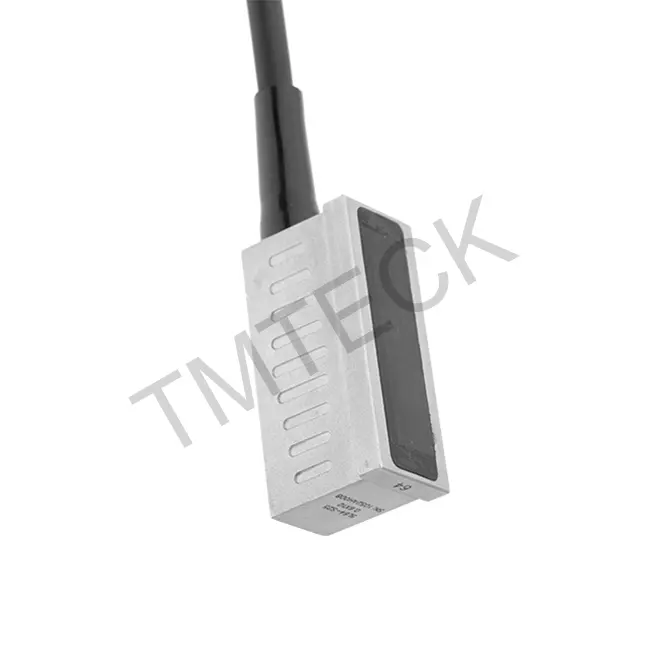

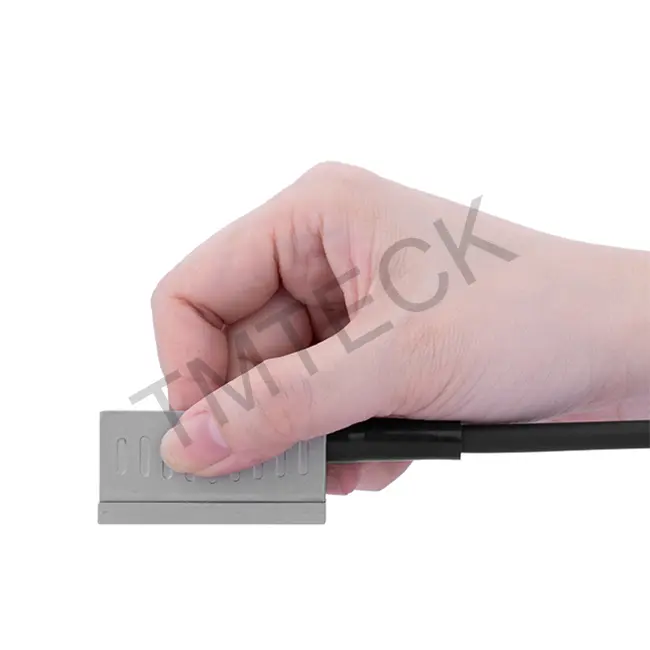

Immersion Probe: It can be used together with water wedges, or the test samples can be placed in water to complete the test.
Advantages
1. Acoustic impedance matched to water, suitable for work piece inspection of geometrically complex shapes.
2. Designed to fit onto the wedge, easy to couple to a variety of surfaces with adjustable underwater sound paths.
3.Single linear scan can cover distances from 30 mm to 90 mm.
4.High accuracy , can work normally for 24 hours under one meter of water depth.
Applications
1.Testing of sheets or fittings made of steel, aluminum or other materials.
2.The composite was tested to detect defects such as delamination and disbonding.
3.Large area scanning of the detected object, online thickness measurement.
Probe | Model | Compatible Model | Element | Freq (MHz) | E-Nos | Pitch | Active (mm) | Elev.(mm) | Size(LxWxH) |
TS26/I2 | 2.25L64-1.0×10 | 2.25L64-64x10 | Linear | 2.25 | 64 | 1.00 | 64.0 | 10.0 | 83x21x35 (mm) (in) |
3.5L128-0.6×10 | 3.5L128-76.8x10 | Linear | 3.5 | 128 | 0.60 | 76.8 | 10.0 | ||
5L128-0.6×10 | 5L128-76.8x10 | Linear | 5 | 128 | 0.60 | 76.8 | 10.0 | ||
7.5L128-0.6×10 | 7.5L128-76.8x10 | Linear | 7.5 | 128 | 0.60 | 76.8 | 10.0 | ||
10L128-0.5×7 | 10L128-64x7 | Linear | 10 | 128 | 0.50 | 64.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:3.5L128-0.6×10-TS26/3.5L128-76.8x10-I2
Element:128
Element Shape:linear
Size:LxWxH 83x21x35(mm)3.27×0.83×1.38(in)
Application:Testing of sheets or fittings made of steel
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
