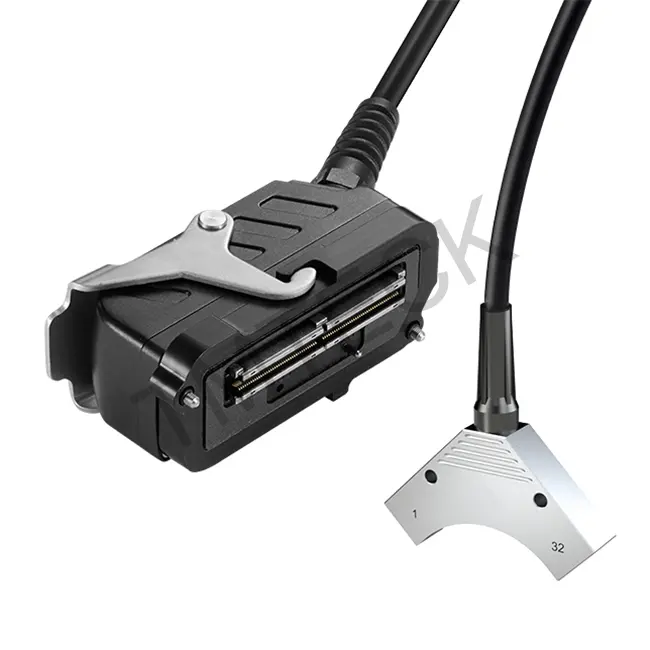

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.
Advantages
1.Near-wall probes have shorter dead zones at both ends
2.Widely used in composite channel inspection
3.Can be used for C-scan detection of composites (delamination, debonding and porosity)
4.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
Probe | Model | Compatible Model | Element | Freq (MHz) | E-Nos | Pitch | Active (mm) | Elev. (mm) | Size(LxWxH) |
TS29/R4 | 2.25C32-1.35×8 | 2.25C32-43.2x8 | Concave | 2.25 | 32 | 1.35 | 43.2 | 8.0 | 43x14x43 (mm) 1.69×0.55×1.69 (in) |
3.5C32-1.35×8 | 3.5C32-43.2x8 | Concave | 3.5 | 32 | 1.35 | 43.2 | 8.0 | ||
5C32-1.35×8 | 5C32-43.2x8 | Concave | 5 | 32 | 1.35 | 43.2 | 8.0 | ||
10C32-1.35×8 | 10C32-43.2x8 | Concave | 5 | 32 | 1.35 | 43.2 | 8.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:5C32-1.35×8-TS29/5C32-43.2x8-R4
Element:32
Element Shape:Concave
Size:R25,LxWxH 43x14x43(mm)1.69×0.55×1.69(in
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
