TS28 R1 Concave Probe


Need A Quote ?

We love to hear from you !

Product details Parameters

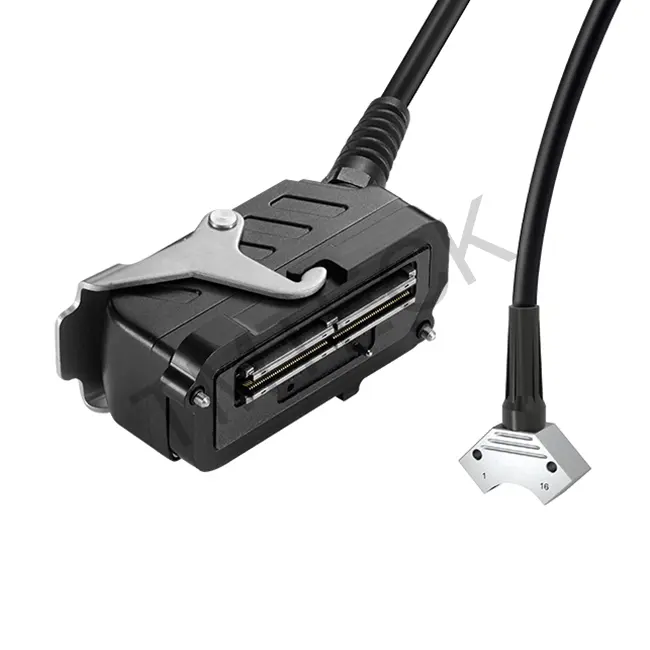

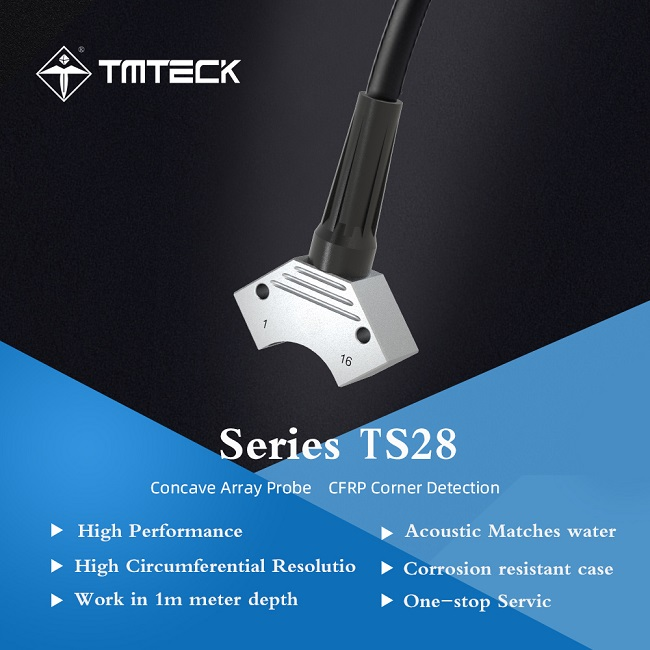

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.

Advantages

1.Near-wall probes have shorter dead zones at both ends

2.Widely used in composite channel inspection

3.Can be used for C-scan detection of composites (delamination, debonding and porosity)

4.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts



 Specification

Probe
Series

Model

Compatible

Model

Element
 Shape

Freq (MHz)

E-Nos

Pitch
(mm)

Active
Aperture

(mm)

Elev.

(mm)

Size(LxWxH)

TS28/R1

2.25C16-1.0×8

2.25C16-16.0×8

Concave

2.25

16

1.00

16.0

8.0

 23.5x14x23.5(mm)

0.93×0.55×0.93(in)

3.5C16-1.0×8

3.5C16-16.0×8

Concave

3.5

16

1.00

16.0

8.0

5C16-1.0×8

5C16-16.0×8

Concave

5

16

1.00

16.0

8.0

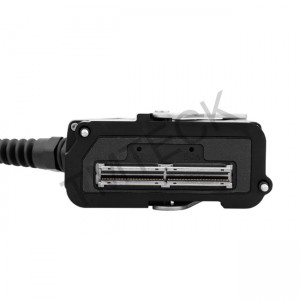

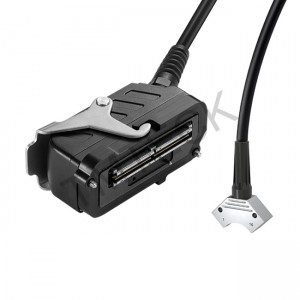

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include  frequency, element number and pitch,etc.



Quick Details

Model Number:2.25C16-1.0×8-TS28/2.25C16-16.0×8-R1

Element:16

Element Shape:Concave

Size:R10.2,LxWxH 23.5x14x23.5(mm)0.93×0.55×0.93(in)

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
