Introduction

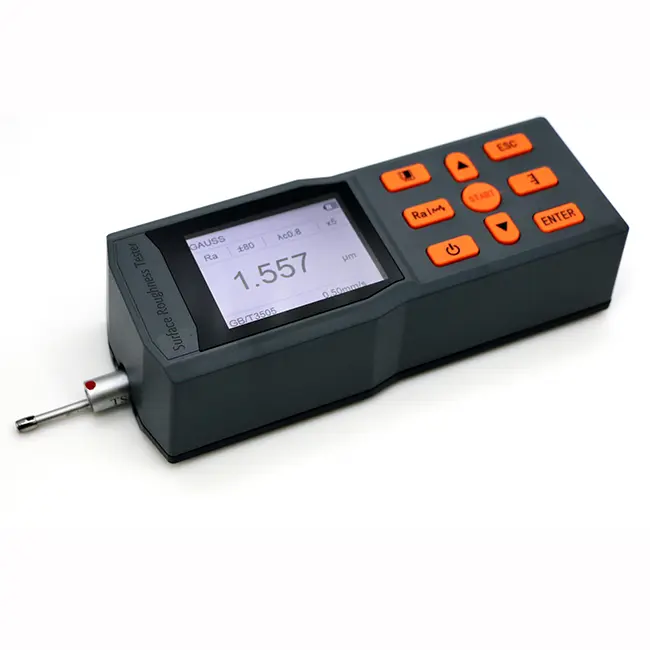

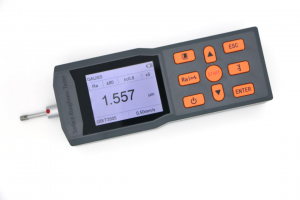

TMR201 Hand-held Surface Roughness Tester is a new generation of Surface Roughness Tester Series. It features high accuracy, wide application, simple operation, portability and stable performance. The tester is widely used in measuring the surface roughness of various metals and non-metals.

Application

1. Machining process control: grinding, turning, milling, honing, polishing, etc.

2. Heavy industry: shipbuilding, aerospace, pipeline, steel plate

3. Aerospace: turbine blades, turbine shafts, wings and other composite materials.

4. Others: printing roller, floor, and glass.

Measuring Principle

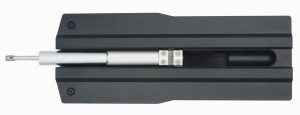

By using wear-resistant diamond needle  parts and precise motor drive structure, the sensor  walks at the absolute linear movement specified by the standard, and walks at the correct horizontal distance.When the low test force tentacles across the wave peak and wave valley, the high precision inductive bridge circuits will detect their vertical displacement through modulation, amplification and phase sensitive detection wave. The sensitivity can up to nanoscale level.The voltage signal corresponding to the roughness is transmitted to a high computing power ARM + DSP processor, using a standardized algorithm to calculate the surface roughness parameters instantly.

TECHNICAL SPECIFICATIONS

Features

.High-speed ARM+DSP processor with low power consumption, strong computing power and fast calculation speed, and the result will be available within 1 second after the travel.No need to wait.
.Collect thousands of datas in the  distance of travel to accurately reproduce the surface of the workpiece.
.Precise digital filter. Ensure machine repeatability is less than 2%.
.10% accuracy error in line with the national standard.
.Adapt to high temperature, high humidity, high vibration working environment.
.The test results can be traced back to the roughness parameters of the national benchmark.
.Diamond touch needle, strong and durable.
.Unique software processing. Start the test immediately, no need to wait.
.Precision inductive bridge sensor with resolution up to nanometer level.
.Low measuring force sensor in line with national standards has low impact on user workpiece.

Characteristics

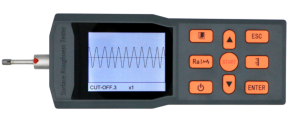

.320*240 Highlight color LCD screen, exquisite display of roughness waveform.
.320*240 Highlight color LCD screen.Adapt to the low-light workshop environment
.Simple nine-button operation. clear and simple.
.Simple and intuitive menu design is convenient to set roughness parameters.
.Lithium battery power supply with USB charging. Charge it once, users can use it thousands of times.
.Very low motor sound. Strong operating comfort.
.Simple software calibration. Errors can be quickly corrected on site.

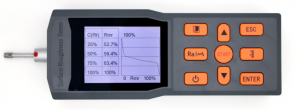

.Up to 26 roughness parameters.
.With the USB communication function, users can upload the data to the computer and PLC.
.100 sets of test data storage.

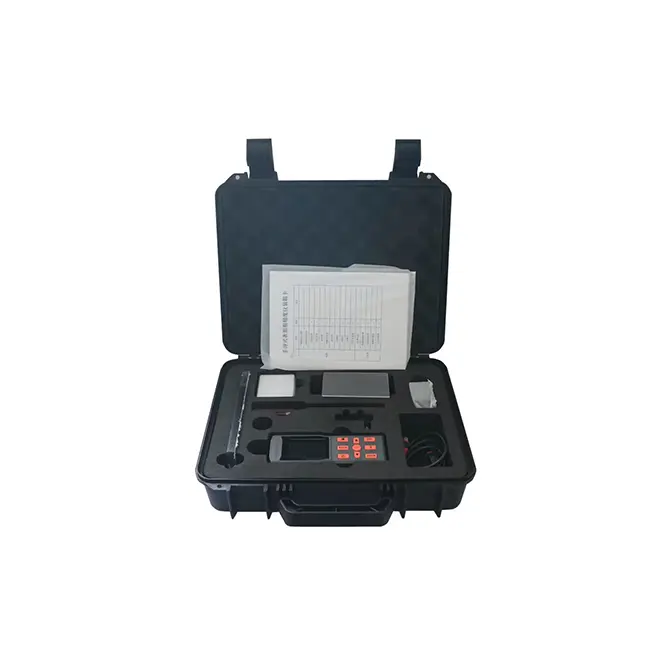

Package List
