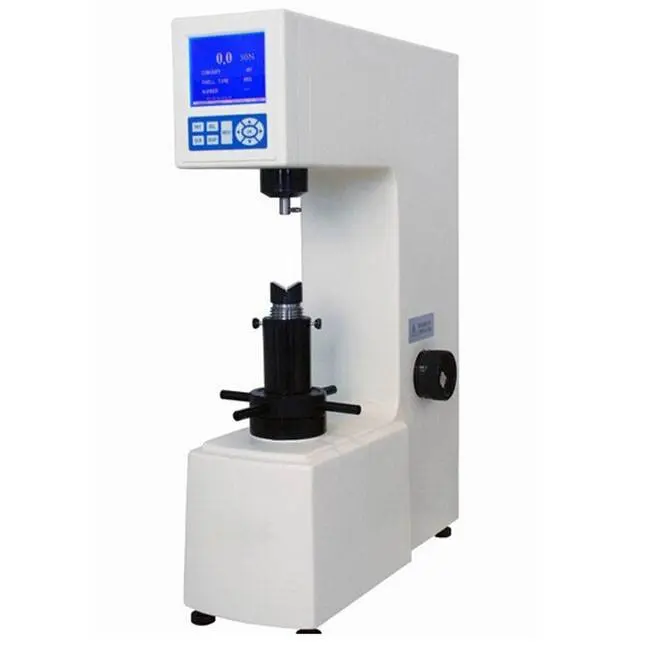

HRMS-45 Digital Superficial Rockwell Hardness Tester

Description:

HRMS-45 Digital Superficial Rockwell Hardness Tester adopts novel-designed large LCD screen to display,as well as menu structure.It mainly functions are as follows:1. Selection of Rockwell hardness scales,2. Exchange hardness values among hardness scales, 3. Output the results of hardness measurement with printer,4. RS-232 hyper terminal setting is with good reliability,excellent operation and easy watching.

Usage Range:

Surface hardened steel,surface heat treating and chemical treating materials,copper,aluminum alloy sheet,zinc layers,chrome layers,tin layers,bearing steel,cold and hard casting parts,etc.

Technical Specifications:



Pre-load(kg)29.4N(3KG)
Loads(kg)147,294,441N(15,30,45kg)
Load holding time2-60S
ReadoutDigital display
Power supllyAc220±5% 50/60Hz
Specimen Height170
Throat depth160
Dimensions500×150×750
Weight85kg



Standard configuration:

Diamond Rockwell Indenter1pc
Diameter 1.588 Hard Alloy Steel Ball Indenter1pc
Large Testing Table1pc
Medium Testing Table1pc
V-shaped Testing table1pc
HR30N Hardness Blocks1pc
HR30T Hardness Blocks1pc
RS-232 Interface1pc
Power Cable1pc
