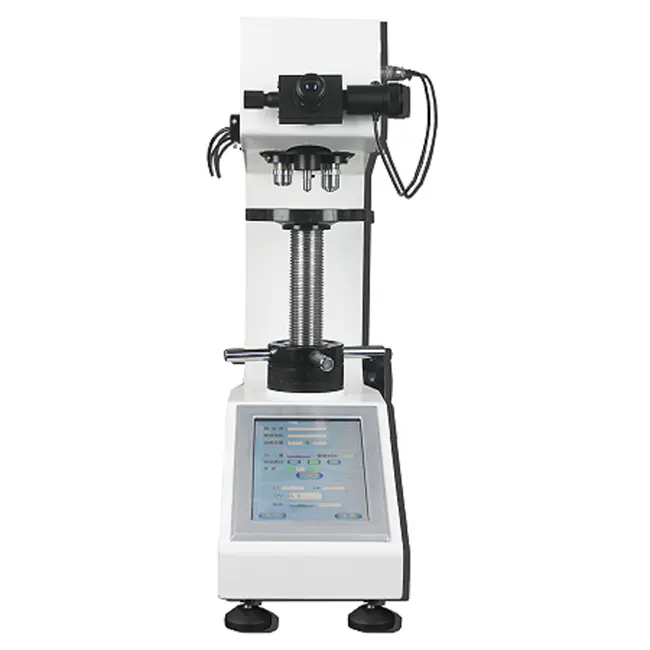

TMTECK TMHV-10000MDT Auto Turret Vickers Hardness Tester

Need A Quote ?

We love to hear from you !

Product details Parameters

Main Feature

TMHV-10000MDT with large 8’ LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online.  The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.



Technical Specifications

ModelTMHV-10000MDT
Test force0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10Kgf(98.0N)
Meet standardGB/T4340，ASTM E92
Measurement resolution0.01?m
Conversion scaleRockwell、Brinell
Hardness measuring range8~2900HV
Test force application methodAutomatic (loading, Dwelling , unloading)
Test microscopemagnification100X、200X（Both of them can be used for testing）
Test force dwell time1~99s
Data output8’touch screen, 20 different kinds of test result, built-in printer with RS-232 interface
Maximum height of specimen160mm
Distance from the center to the outer wall of the indenter135mm
Dimensions600*220*700mm
WeightAbout 55Kg
PowerAC220V+5%，50-60Hz





Standard Accessories：

Name

Quantity

Name

Quantity

10X eyepiece

1

Middle, Large, V shape testing table

Each 1

level

1

Regulating screw

4

Weight

3

Fuse cable(2A)

2

Standard block

2

Dust bag

1

Power cable

1

certificate、warranty、manual

Each 1

Print paper

1

Wrench

1

Touch pen

1
